What are the advantages of using a 5-axis CNC router for boat manufacturing?

Writer： admin Time：2026-07-20 16:02 Browse：℃

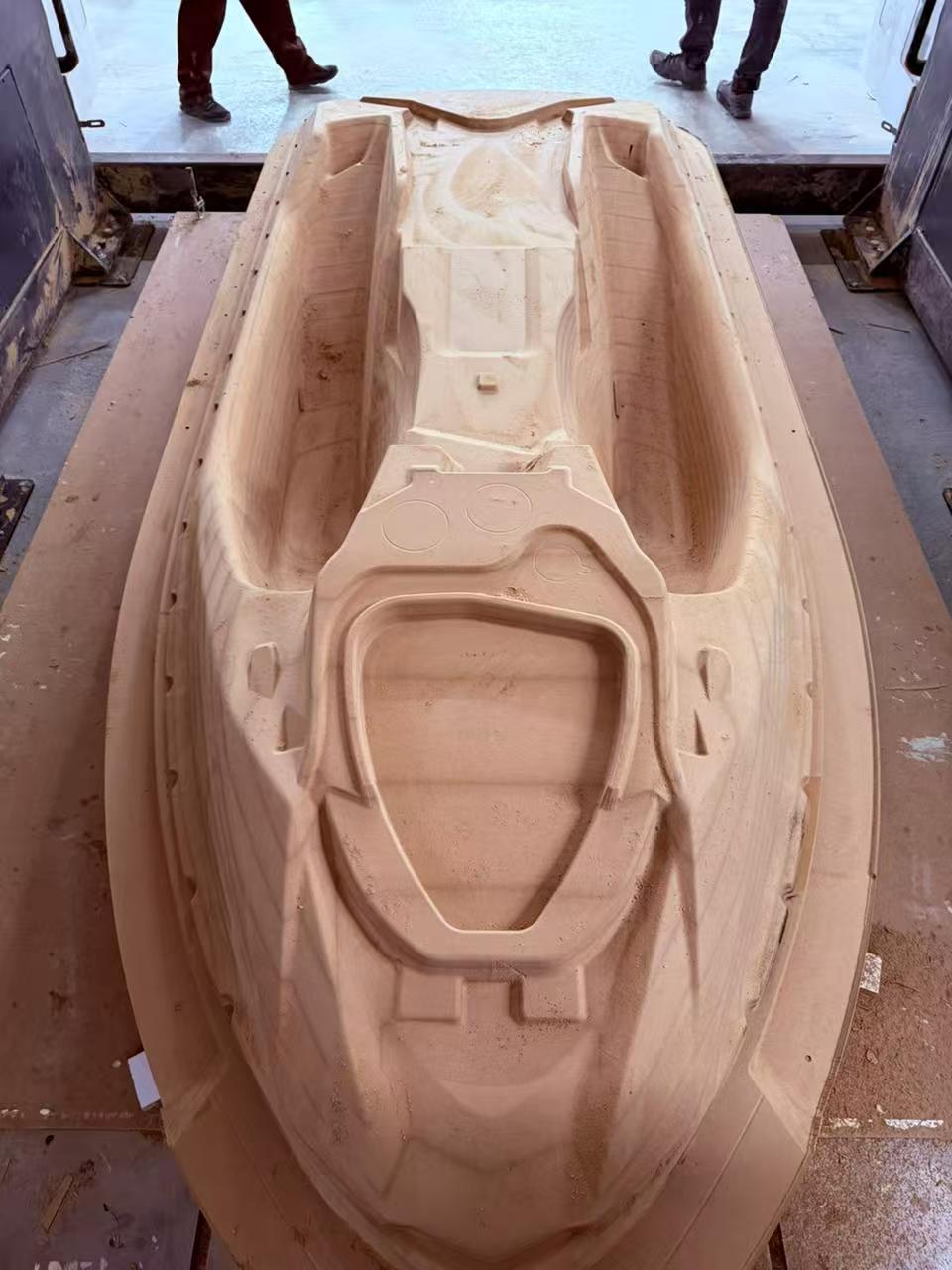

Advantages 5 AXIS  CNC for Boat Molds

1. One-setup full machiningNo repeated disassembly & repositioning; eliminates alignment errors between segmented mold sections, critical for smooth continuous hull curves.

2. Greatly reduce manual fairing workTilt cutter to machine surface at normal angle, ultra-smooth finish; manual sanding labor cut by ~70% vs hand-sculpted or 3-axis segmented molds.

3. Handle undercuts & deep cavities easily3-axis machines cannot reach inward curved hull contours; 5-axis swinging spindle clears all complex negative shapes directly.

4. Higher production efficiencyMold cycle shortened from weeks to days; overall machining speed up 40%+ vs traditional equipment.

5. Stable precision on oversized workpiecesAnti-thermal expansion structure maintains tight tolerance over 10+ meter long hulls, consistent hydrodynamic hull lines for better boat performance.

6. Lower long-term labor costLess skilled mold sculptors needed; digital CAD/CAM files replicate identical hull plugs for mass production.




7. Price Range & Market Segments

8. Chinese standard model (2500×5500mm): USD 20,000 – 100,000

9. Oversized superyacht dedicated machine (10–20m travel): USD 120,000 – 300,000

10. Premium European brand (CMS Poseidon): USD 400,000 – 900,000+ (for top shipyards)




     Superior dimensional precision for oversized marine workpieces

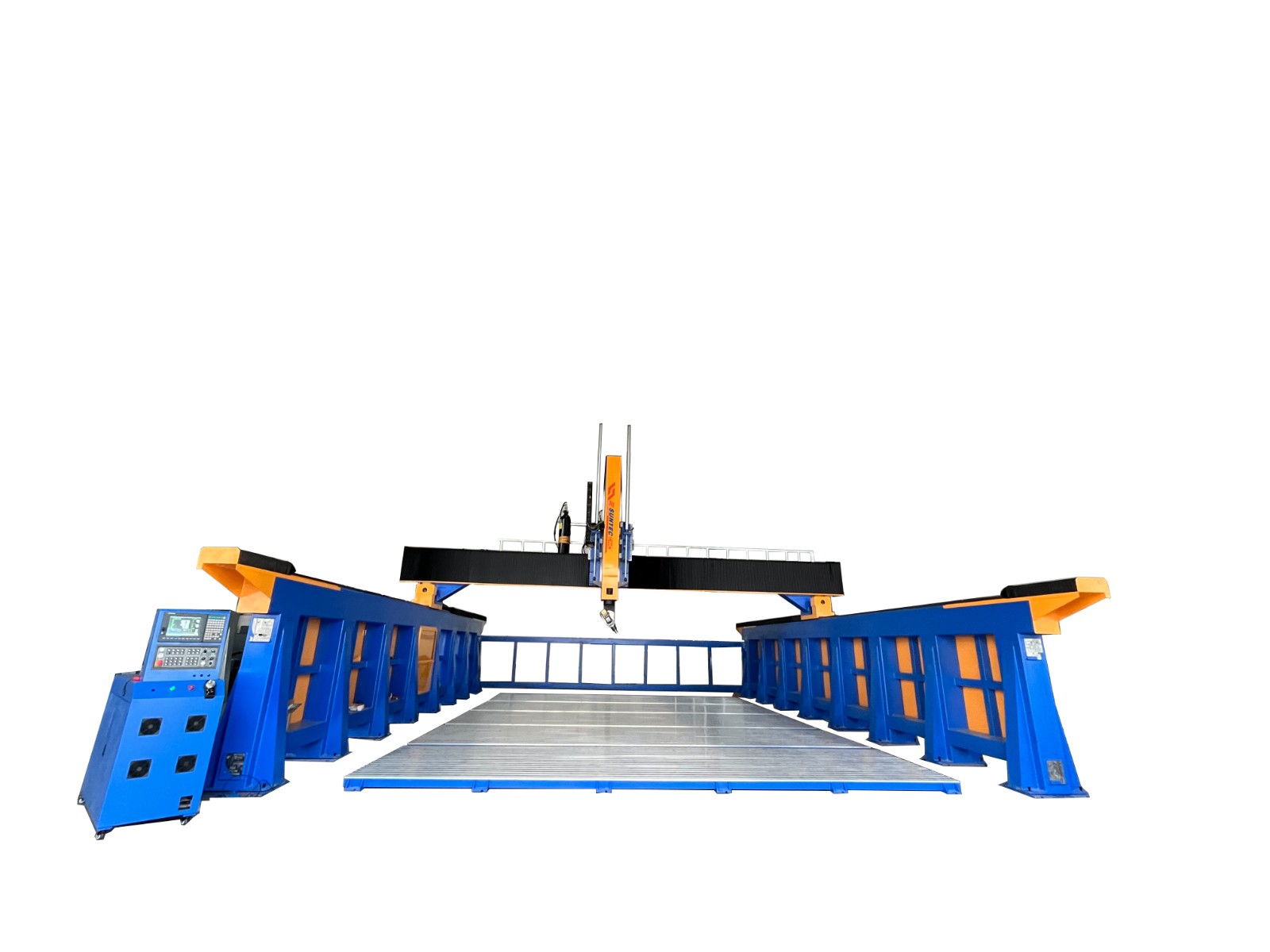

11. Boat molds often span 6–20 meters in length. Professional marine 5-axis gantry machines feature rigid anti-deformation frames with RTCP five-axis linkage function:

12. Stable long-distance positioning accuracy (±0.02mm)

13. Consistent tolerance across full-length hull plugs

14. Guarantees interchangeable composite parts for series boat production

15.  Versatile multi-material processing for full boat production

16. our 5 axis cnc router  handles nearly all core marine manufacturing materials, reducing extra equipment investment:

17. Light mold blanks: EPS/PU foam, modeling clay (master plugs)

18. Medium-density molds: epoxy tooling board, MDF, marine timber

19. Hard finished components: fiberglass FRP, carbon fiber panels, teak wood decks

20. Auxiliary parts: aluminum marine fixture prototypes

How 5-Axis CNC Router Quality Impacts Its Price (Boat Manufacturing Models)

 5-axis swing head quality (the biggest cost gap)

This is the most critical part for boat curved surfaces and undercuts.

• Low quality: Pseudo 5-axis / non-RTCP headSimple single-axis tilt structure, no real-time tool center point control. Cannot machine deep hull undercuts smoothly, heavy vibration when cutting large foam blanks.Cost impact: Cuts machine price by 35%–50%. Only fit tiny simple boat prototypes.

• Mid quality: Domestic A/C swing head, ±90° tilt, basic RTCPStable for small-to-medium speedboat plugs, light foam cutting, limited continuous 5-axis linkage.Cost impact: Standard baseline price for Chinese marine routers.

• High quality: Imported full swing head (Hiteco / Demas), ±120° tilt, heavy-duty bearingZero backlash, long service life for daily heavy cutting of epoxy board and FRP. Perfect for full yacht hulls with complex concave lines.Cost impact: Adds $9,000–$25,000 to total machine cost.

•

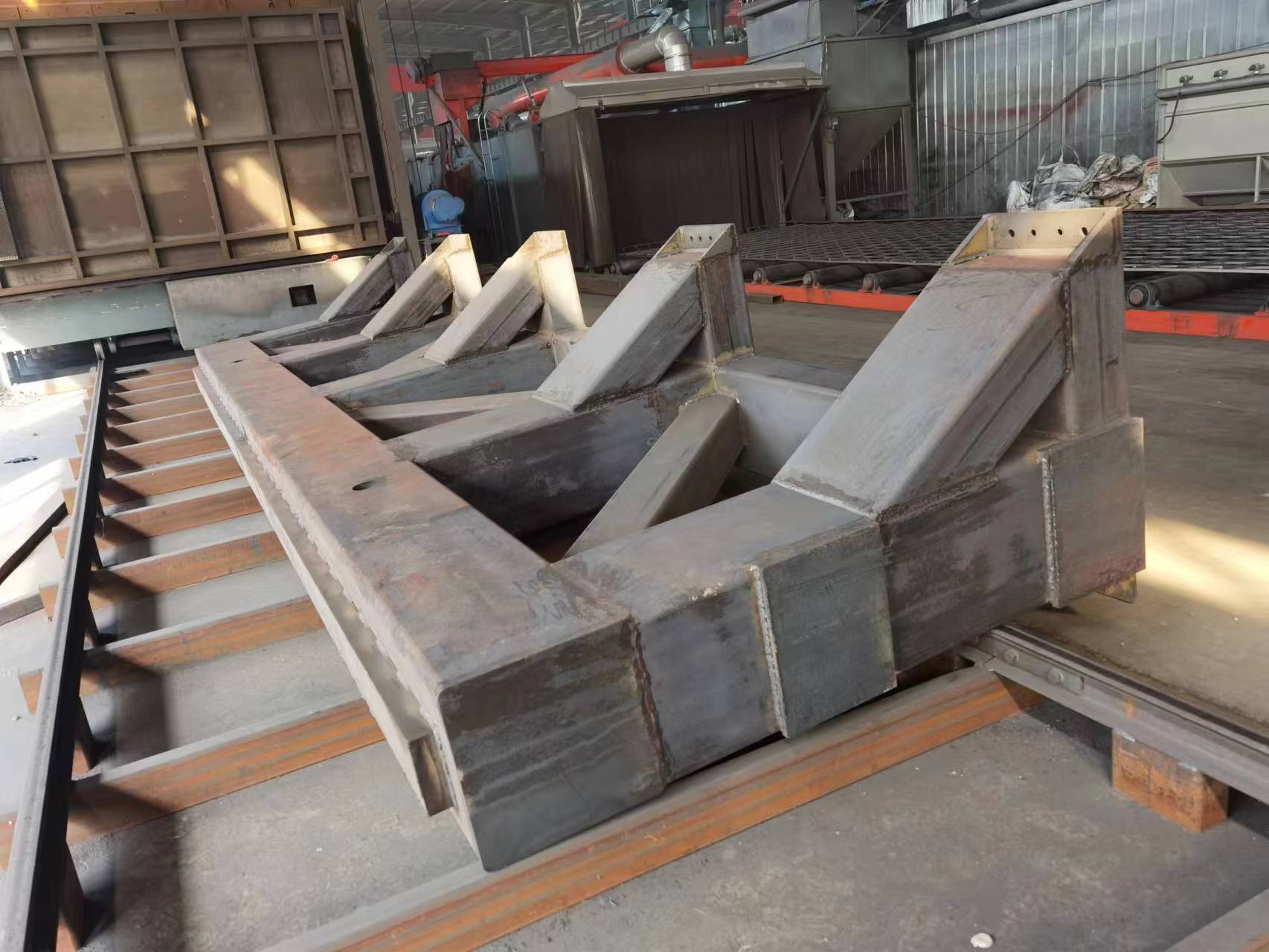

 Machine frame & structural rigidity quality

Boat molds require extra-large tables (3m–20m long), so frame thickness determines stability.

• Low quality: Thin welded steel, weak gantry, no stress reliefEasy deformation after 1–2 years of heavy cutting; hull molds end up with uneven curved surfaces, poor hydrodynamic precision.Cost impact: Reduces price by 20%–30%. Thin steel saves raw material and processing labor.

• Mid quality: Medium-thick steel, basic stress relief annealingStable for small boat mass production, slight deformation risk on machines over 8m long. Standard mid-tier model cost.

• High quality: Thick heavy steel, full annealing, reinforced crossbeams, anti-vibration designNo deformation over 10+ years, consistent ±0.02mm precision on 15m superyacht plugs.Cost impact: Raw steel and heat treatment raise price by $12,000–$40,000 for oversized marine gantries.

•


 Spindle brand, power and build quality

Marine routers cut soft foam and hard epoxy/carbon fiber, so spindle durability matters greatly.

• Low quality: Low-power domestic air-cooled spindle (6–9kW)Fast wear, loud vibration, cannot cut dense epoxy tooling board. Only for lightweight foam roughing.Cost impact: Saves $4,000–$10,000 vs imported heavy spindles.

• Mid quality: Domestic water-cooled spindle (9–18kW)Balanced for small yacht workshops, stable daily foam processing.

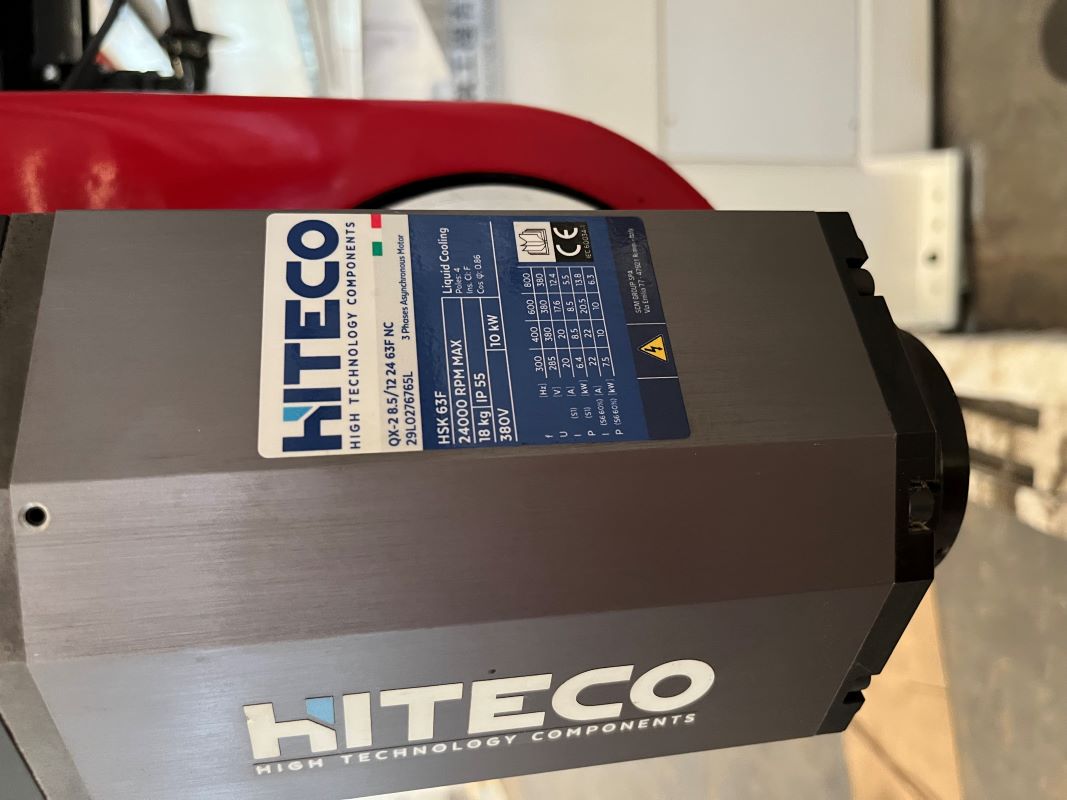

• High quality: Imported Italian Hiteco / HSD water-cooled spindle (18–33kW)Low runout error, continuous 24-hour cutting, suitable for hard composite mold materials.Cost impact: Upgrades add $7,000–$22,000.


•

CNC control system precision quality

Controls decide surface smoothness of hull curves and five-axis linkage stability.

• Low quality: Entry-level RichAuto simple controllerLimited five-axis functions, rough curved surface finish, frequent toolpath lag on large boat models.Cost impact: Lowest control cost, reduce machine price by $6,000–$18,000.

• Mid quality: Syntec industrial CNC, complete RTCP functionIndustry standard for Chinese marine CNC routers, stable for most boat manufacturers.

• High quality: OSAI / Siemens 840D / Heidenhain closed-loop control with linear scalesUltra-smooth five-axis movement, zero positioning drift, top precision for luxury yacht molds.Cost impact: Premium control upgrades add $20,000–$85,000.

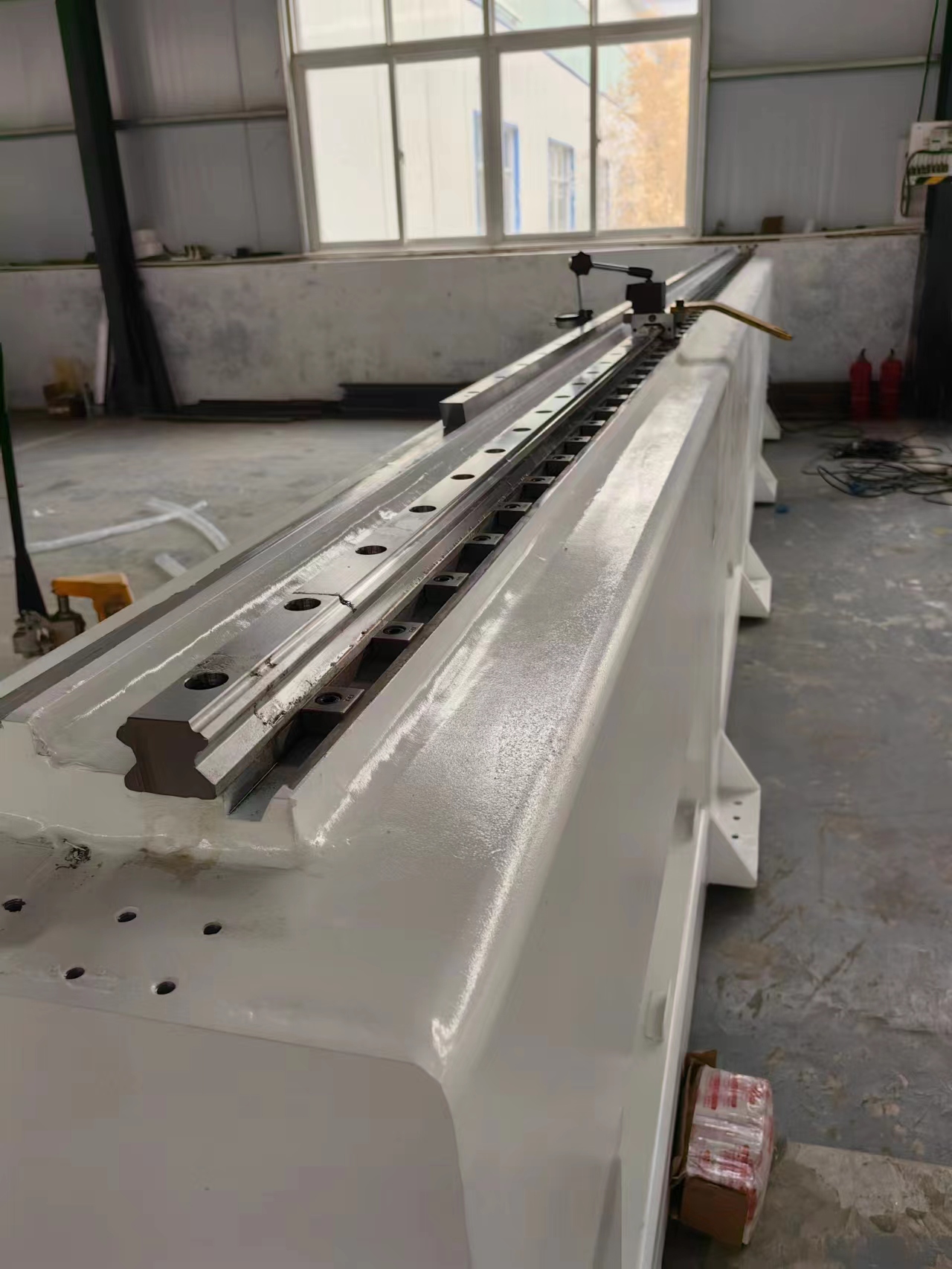

 Transmission & guide rail quality

• Low quality: Ordinary square rails, plastic gear racks, open-loop stepper motorsBig backlash, rough cutting texture, poor repeat accuracy on repeated hull mold copies. Low manufacturing cost.

• Mid quality: Domestic heavy-duty linear rails, helical rack, servo motors semi-closed loopStandard configuration for mid-size boat factories.

• High quality: Imported HIWIN/THK heavy load rails, hardened helical rack, full closed-loop servo + linear grating scalesMinimal backlash, consistent precision after thousands of hours cutting.Cost impact: High-end transmission system increases price by $5,000–$15,000.

•


Auxiliary configuration quality (linked to overall machine grade)

High-quality full packages push costs far higher:

• Basic low-quality version: No ATC tool changer, simple vacuum table, weak dust collector

• Premium high-quality version: 8–12 station auto tool changer, full vacuum adsorption table, heavy dust extraction, automatic lubrication systemEach high-grade auxiliary function adds $3,000–$12,000 to the total price.

 After-sales & component lifespan (hidden value affecting price tier)

• Low-quality cheap machines: Short bearing/spindle lifespan (1–2 years), frequent breakdowns, limited technical support for complex five-axis boat CAM programming

• High-quality industrial marine routers: Core parts warranty 2–5 years, professional marine post-processor support, on-site commissioning and long-term spare parts supplyManufacturers add service and reliability costs into the machine quotation, raising prices for premium quality models.
