Why Replace Multiple Wood Machines: ST-3113 5 Axis PTP CNC with PTP Drilling Bank & Dual Tool Magazine

Introduction

Custom whole-house cabinet factories, solid wood door workshops and stair processing manufacturers used to deploy multiple separate machines: independent PTP boring machine, flat CNC router, 3-axis carving machine and special five-axis milling equipment. Frequent workpiece re-clamping causes positioning errors, low production efficiency, huge labor costs and large workshop space occupation.

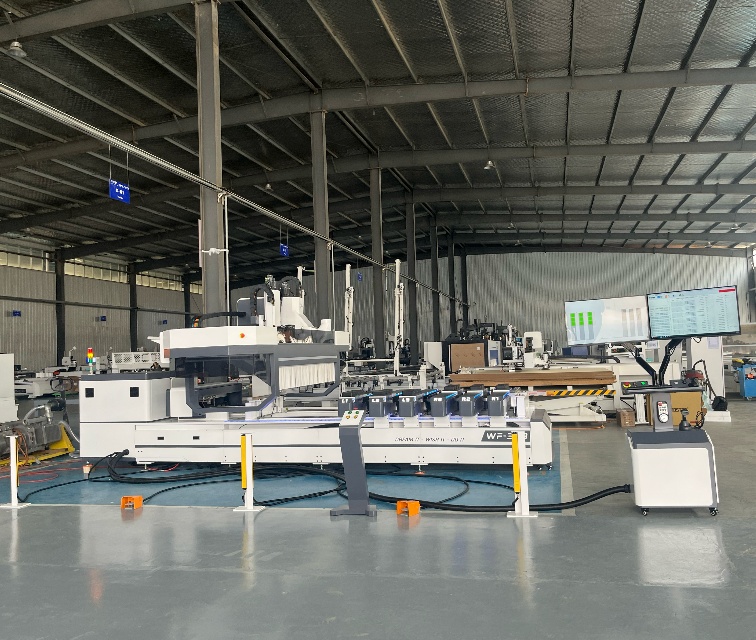

 Suntec ST-3113 Intelligent 5 Axis PTP CNC Machining Center perfectly solves these pain points. It integrates RTCP five-axis linkage technology, multi-spindle PTP drilling bank, dual ATC tool magazine, double-station automatic processing and world-class imported core components into one heavy-duty annealed steel frame. In a single clamping, the machine can complete cutting, five-side multi-direction drilling, grooving, 45° miter cutting, Lamello hidden slotting, edge chamfering, 3D curved surface milling and relief carving.

As a high-efficiency intelligent production solution, it fully meets the complex processing demands of door-wall-cabinet integrated customization, solid composite doors, high-end solid wood furniture, office cabinetry and cross-material processing including aluminum honeycomb panels, carbon fiber boards and wood molds.

Advantages of Suntec ST-3113 5 Axis PTP CNC Center

1. Genuine RTCP 5-Axis Linkage, One Clamping Finishes All Complex Woodworking Crafts

Equipped with Italy OSAI professional woodworking five-axis control system and HITECO oblique 50° BC five-axis spindle head, it supports real RTCP five-axis interpolation function, maintaining stable consistent cutting speed on irregular curved surfaces.It realizes one-time forming of 45° miter cutting, Lamello hidden connector slot, lock mortise, hinge hole, curved door edge, spiral stair baluster and 3D relief carving without secondary clamping. Compared with traditional 3-axis CNC equipment, it eliminates repeated positioning deviation and shortens overall processing cycle by over 70%.

Machine Processing Craft Samples

2. Double-Station Alternating Production, Greatly Improve Mass Customization Output

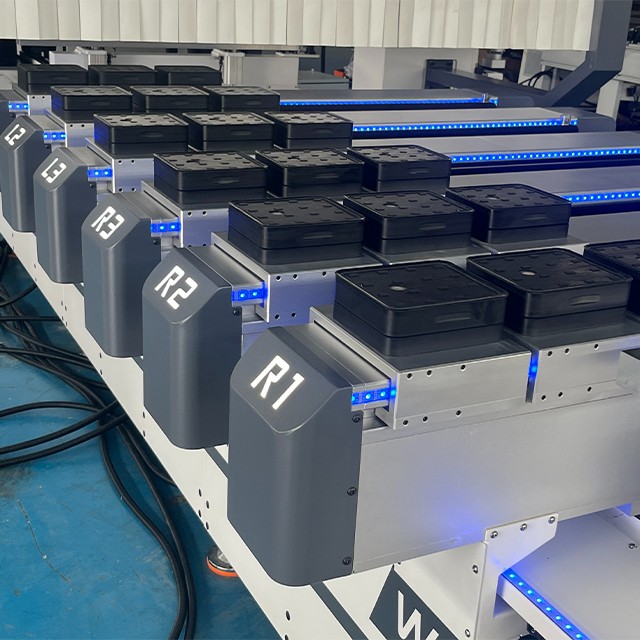

The machine adopts patented intelligent mobile vacuum adsorption worktable with automatic positioning and workpiece avoidance system. Two independent stations operate alternately without machine idle time: workers load and unload raw boards on one station while the other station completes cutting and drilling.The system automatically identifies plate dimensions and intelligently distributes processing tasks, perfectly matching high-volume customized furniture orders and drastically reducing single-piece processing time. The table strip is equipped with LED indicator lights to accurately display suction position and workpiece size down to millimeter precision.

3. Dual Tool Magazine Collaborative ATC System, Automatic Switch Between Rough & Fine Machining

Unique dual tool library design brings stronger production flexibility:

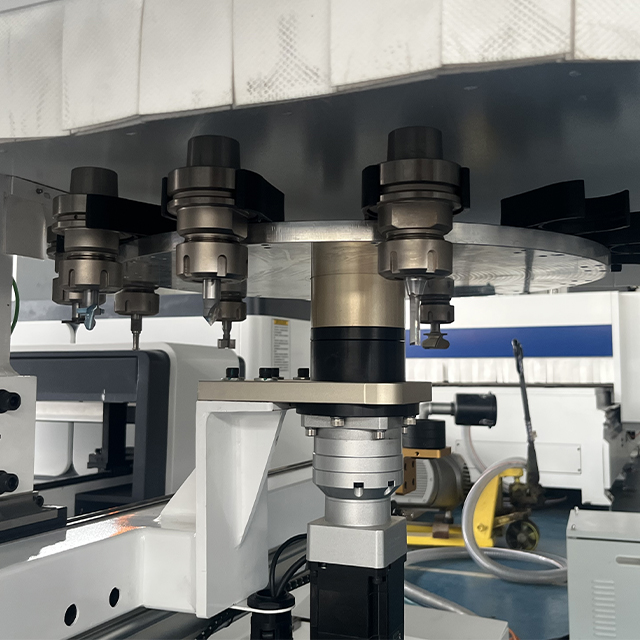

• 12-station servo disc magazine stores daily common tools: milling cutters, chamfer bits, hinge drills and forming tools for cabinet panel processing;

• Rear 8-station inline tool magazine is specially configured for heavy-duty rough cutters, large saw blades and composite profiling tools for thick solid wood and heavy cutting tasks.Automatic fast tool change without manual operation, matched with large-diameter automatic tool setter to eliminate manual tool setting errors and save pre-processing preparation time.

•


4. Full Import Premium Core Components, Stable Long-Term Precision Retention

All key functional parts adopt world-famous industrial brands to guarantee 24-hour continuous heavy-load stable operation and long service life:

1. Italy OSAI Controller: Exclusive woodworking CAM module, built-in CAD graphic drawing, visual tool path simulation, remote real-time monitoring and fault early warning, supports remote online diagnosis and maintenance;

2. HITECO 15KW Five-Axis Spindle: HSK-F63 high-rigidity taper interface, stable 24000RPM high-speed rotation, smooth burr-free cutting for solid wood, aluminum composite and carbon fiber materials;

3. Japan Yaskawa Full Servo System: Medium-inertia bus absolute servo motors with permanent position memory, zero step loss at 60m/min high-speed feeding, uniform delicate cutting texture without wave marks;

4. Supporting premium accessories: Germany Becker high-flow vacuum pump, low-noise Hainann rack, Taiwan PMI guide rails & TBI ball screws, France Schneider anti-interference electrical components.




5. Taiwan Puden Multi-Function PTP Drilling Bank, Full Five-Side Hole Integrated Machining

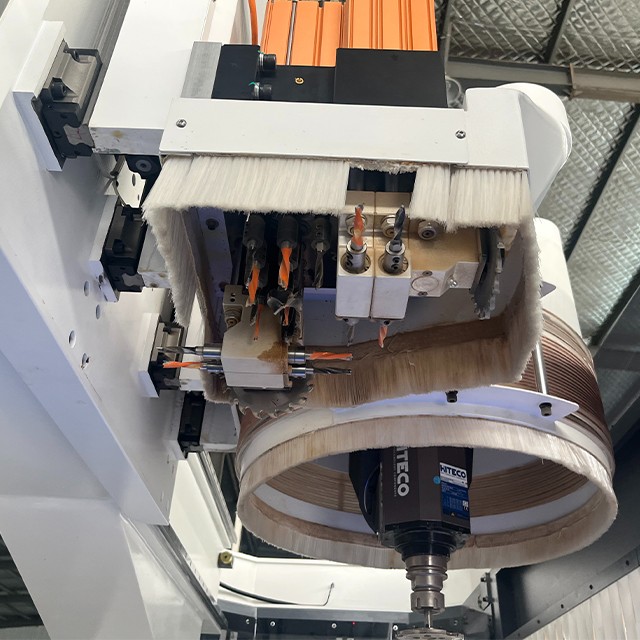

The 9V4H2S multi-spindle drilling group integrates 9 vertical drill bits, 4 horizontal drill bits and 2 integrated saw blades, supporting simultaneous multi-hole jump drilling. It covers all standard hole and slot processes of panel furniture: three-in-one assembly holes, hinge mounting holes, straightener slots, multiple styles of handle grooves, lock mortises, side connecting holes and Lamello 45° oblique holes. All five-side hole processing can be finished in one single clamping without secondary workpiece flipping.

6. Intelligent Digital Production Management, Traceable Unattended Processing

• Wireless barcode scanning gun: One-click scan to automatically load matching processing programs, all production data fully traceable and repeatable for mass batch production;

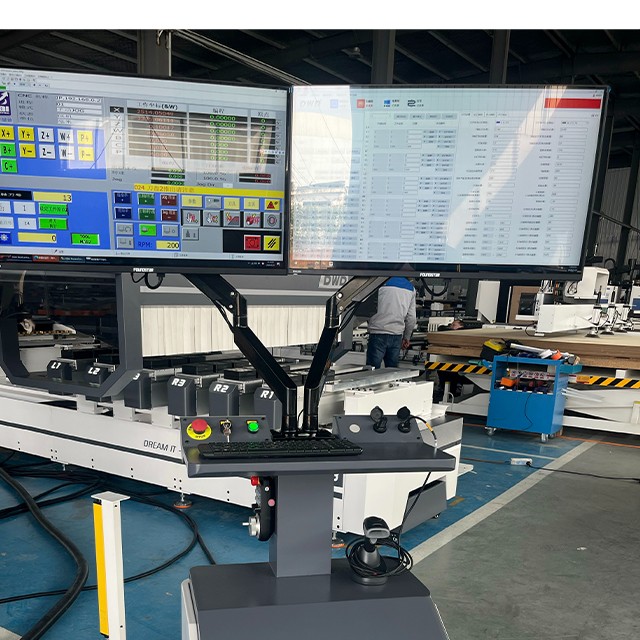

• Independent dual-screen operation terminal: Main touch screen displays graphic tool path and machine running parameters, secondary screen synchronizes real-time processing camera monitoring for convenient operator supervision;

• Automatic chip conveyor belt: Timed automatic chip removal keeps the processing area clean, reducing manual cleaning labor and avoiding sawdust accumulation affecting equipment operation;

• Built-in CAD drawing function: On-site graphic design, dimension marking, hole position editing and one-click tool path optimization without third-party design software.

7. Heavy-Duty Stress-Annealed Steel Frame, Anti-Vibration & Anti-Deformation

The whole machine adopts thick-walled integrated steel tube frame, processed by five-sided gantry milling after sand blasting and high-temperature stress relief annealing to eliminate internal structural stress permanently. It will not deform or vibrate during long-term heavy solid wood roughing, maintaining stable ±0.01mm repeated positioning accuracy for years. Dual safety light curtains and full closed protective cover effectively prevent accidental injury and ensure safe automatic operation.

8. Ultra-Wide Cross-Material Compatibility, Multi-Industry Flexible Production

Not limited to traditional wooden panels, this machine supports diversified material processing with customized fixtures: solid oak, walnut, beech high-end furniture, honeycomb aluminum decorative panels, carbon fiber composite boards, PVC plates, architectural wood molds and small aluminum profiles. One machine can expand multiple business lines for factories without purchasing extra single-function processing equipment.

Traditional separate PTP boring machines and 3-axis woodworking CNC routers can only complete flat panel drilling or simple planar carving, lacking the ability to integrate five-side hole machining and complex curved five-axis forming. SUNTEC Intelligent 5 Axis PTP CNC Machining Center breaks these production limitations, combining Italy OSAI RTCP five-axis control, HITECO high-power five-axis spindle, Taiwan Puden multi-head drilling bank, full Yaskawa servo drive and double-station high-efficiency alternating processing design.

Equipped with dual tool magazine automatic tool change, intelligent remote monitoring and full imported stable core components, it covers all production links of custom cabinetry, solid wood doors, stair components and new composite materials. It effectively reduces factory equipment procurement costs, workshop space occupation and manual labor input, becoming the preferred intelligent upgrading processing equipment for furniture manufacturers worldwide.
