How to choose 5 axis cnc router and hot wire cutting machine

1. Working Principle

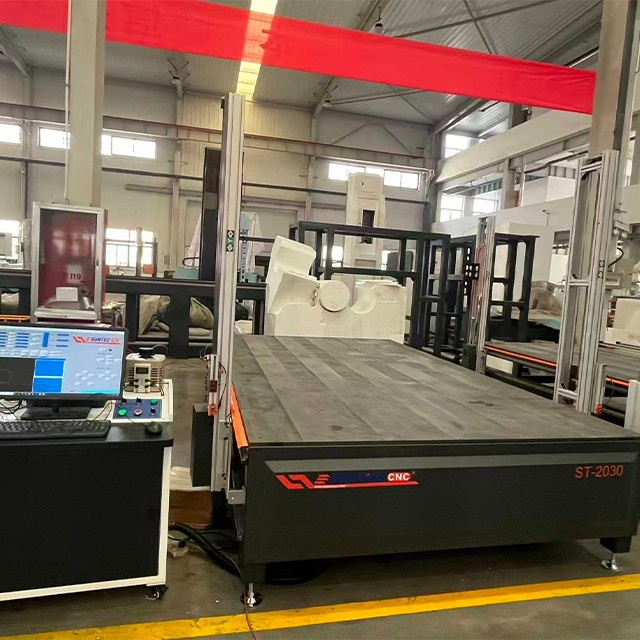

EPS Foam Hot Wire Cutting Machine

The machine relies on thermal melting cutting. Taut nichrome wire is heated by electric current. The high-temperature wire melts EPS/Styrofoam upon contact and separates the foam block.Most standard hot wire cutters are CNC-controlled to move the wire along programmed paths to form 2D profiles; advanced versions support simple angled cuts.

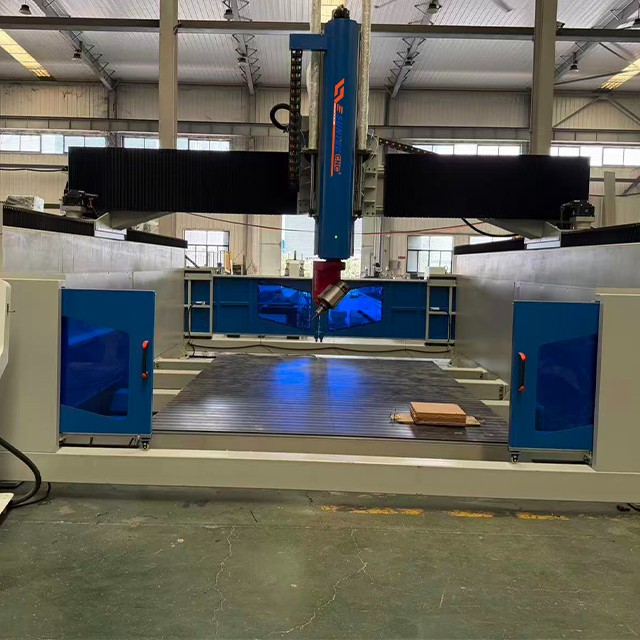

5 Axis CNC Router for Foam

It adopts mechanical milling cutting. A high-speed rotary cutting bit spins and carves foam material by removing excess raw material.Equipped with X/Y/Z linear axes plus two rotating axes, the spindle can tilt and rotate freely. It can reach almost every surface of a workpiece to process complex 3D solid shapes.

2. Difference  for hot wire cutting machine and 5 axis cnc router

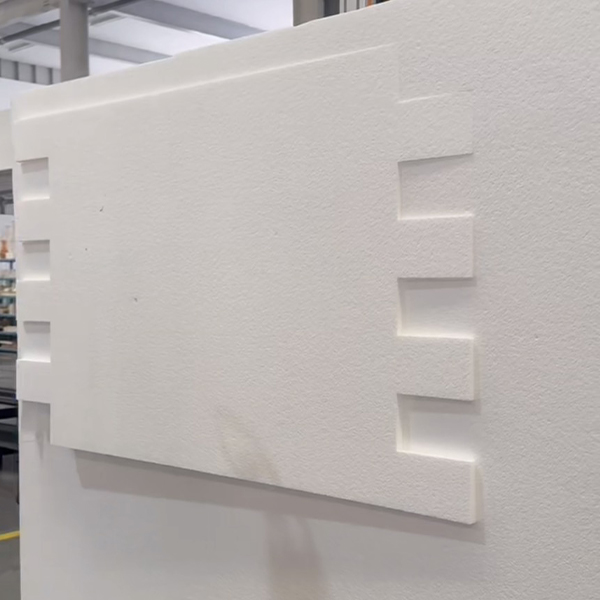

hot wire cutting machine details

• Ultra-smooth sealed cutting surface. No foam particles falling off; no secondary polishing required.

• Dust-free working environment. Only slight foam vapor generates during thermal cutting.

• Fast cutting speed, especially for long strips, linear profiles and curved 2D outlines.

• Low energy consumption and low operating cost. Nichrome heating wire is the only consumable with cheap replacement price.

• High material utilization. Narrow cutting kerf minimizes foam waste.




5 axis cnc router

• Powerful 3D machining capability. Supports complex organic sculptures, hollow structures, undercuts, deep cavities and irregular full 3D models.

• Unmatched shape freedom. Ideal for statues, large-scale sculpture prototypes, boat moulds, automotive moulds and themed craft props.

• Wide material compatibility: EPS, PU foam, EVA, XPS, wood composite, modelling clay and hard mould foam.

• Flexible processing: Engraving, grooving, contour cutting and surface texturing can be completed in one setup.




3.Applications of 5 Axis CNC Router for Foam

The 5 axis CNC foam carving machine stands out for its capability to process complex 3D shapes, undercuts, cavities and organic curved surfaces. It serves a wide range of industrial and creative sectors:

1. Architectural Decoration & Mould MakingProduce foam prototypes for Roman columns, exterior decorative mouldings, dome structures and landscape sculptures. These foam blanks are widely used to make GRC, concrete and FRP casting moulds.

2. Composite Mould IndustryManufacture master models for yachts, car body parts, wind turbine blades, sanitary ware and amusement facilities. Manufacturers use milled foam patterns to replicate fiberglass moulds.

3. Lost Foam CastingCreate complicated 3D EPS white patterns for machinery parts, auto components and pump housings. Unlike hot wire cutters, 5 axis routers can handle deep cavities and irregular contours required by precision casting.

4. Theme Park, Film & Advertising PropsCarve cartoon sculptures, landscape rockery, stage decorations, exhibition installations and large 3D foam letters for events and commercial displays.

5. Transportation & Industrial PrototypingBuild scale models for vehicles, ships, aircraft and wind tunnel test samples. It is also popular for designing equipment appearance prototypes and inspection fixtures.

6. Art & Sculpture CreationMake large urban sculptures, garden artworks and abstract art prototypes. Artists can realize organic, free-form shapes that cannot be achieved by 2D cutting equipment.

7. Custom Protective PackagingMill tailor-made shockproof foam inserts for precision instruments, medical devices and artwork transportation.

8. Multi-material ProcessingApart from EPS foam, the machine works well on PU foam, XPS, EVA, modeling board and composite material patterns.








1. Applications of EPS Foam Hot Wire Cutting Machine

   1.The foam hot wire cutting machine adopts thermal melting technology and excels at 2D profiles, straight cuts, arcs and inclined plane processing. It is widely adopted across multiple industries:

   2.Building Exterior Decoration IndustryIt is the mainstream equipment for producing EPS decorative mouldings, cornices, window surrounds, wall lines, segmented Roman column blanks and shaped thermal insulation panels. The self-sealed cutting surface is ready for subsequent plastering and construction without extra polishing.

   3.Lost Foam CastingMass-produce 2D and simple angled EPS white patterns for standard casting parts, pipe fittings and flat casting blanks.Note: It cannot process workpieces with deep cavities, undercuts and complex organic 3D shapes, which require a 5 axis CNC foam router.

   4.Protective Foam PackagingCut standard foam sheets, curved edge guards and simple buffer foam blocks. Ideal for mass production of regular profiles rather than intricate custom inserts.

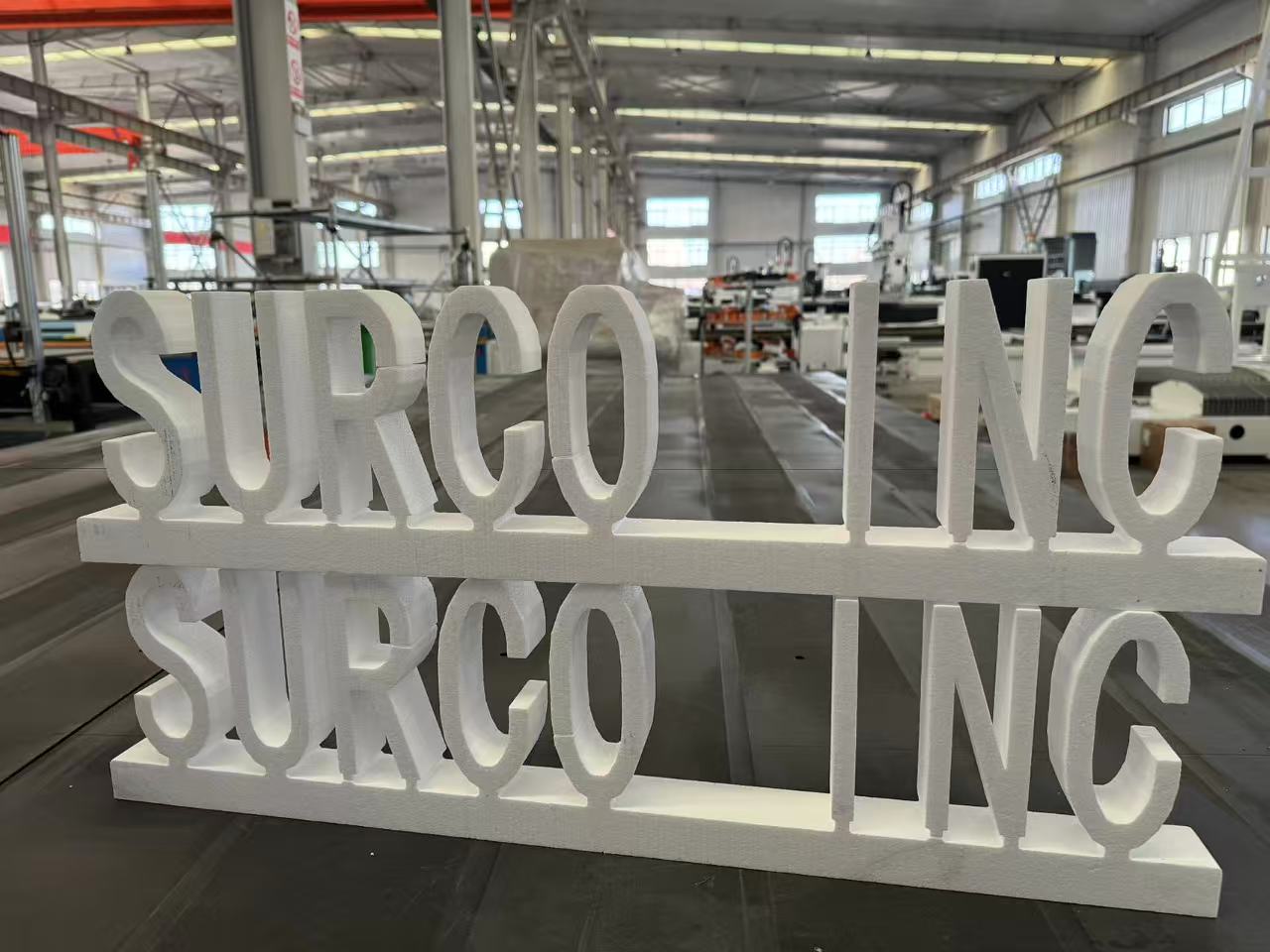

   5.Advertising & Event DecorationFabricate flat foam letters, simple curved advertising sculptures, exhibition decorations and festival foam ornaments.

   6.Model Making IndustryProduce flat panels and basic curved components for architectural sand tables and terrain foundations. Not suitable for complex sculptural models.

   7.Thermal Insulation IndustryCut EPS and XPS insulation boards, sloped insulation layers and shaped foam blocks for roof and wall insulation projects.











   4. How to Choose The Right Machine For Your Factory

   Choose EPS Foam Hot Wire Cutting Machine if:

   1.Your main products are 2D architectural foam lines, insulation profiles, flat casting patterns

   2.You pursue high output speed and low daily running costs

   3.You want a clean workshop without heavy dust

   4.You rarely produce complex 3D carved foam workpieces

   Choose 5 Axis CNC Router for Foam if:

   1.You focus on 3D sculptures, mould making, prototype development, themed props

   2.Products require concave surfaces, hollow structures and irregular organic shapes

   3.You process multiple types of foam materials besides standard EPS

   4.Custom complex orders are your primary business
