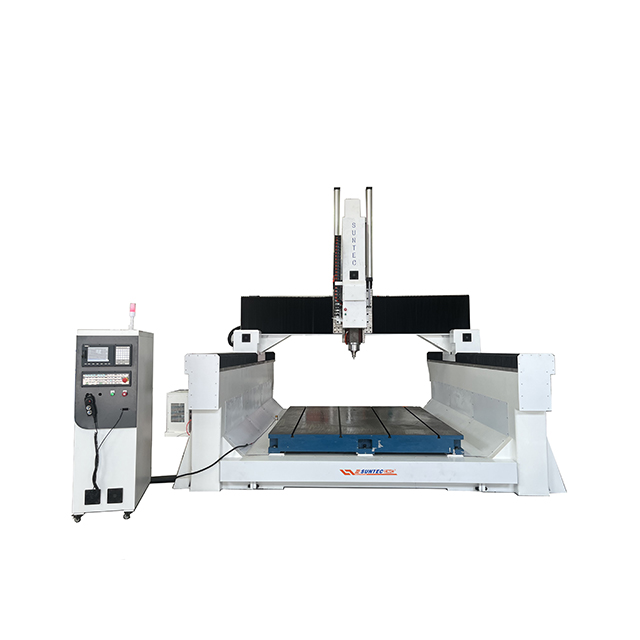

Heavy-Duty 3 Axis CNC Router with BT40/BT50 Spindle & Cast Iron Table for Precision Metal Milling

Metal mold workshops, machinery processing plants and auto parts manufacturers need high rigidity, heavy-load CNC equipment for long-term metal milling. Ordinary woodworking CNC routers with aluminum frames and light spindles cannot bear heavy metal cutting, causing vibration, dimensional deviation and short service life.

This industrial 3 axis CNC router is specially customized for metal milling. It is equipped with integrated stress-relief cast iron worktable, heavy-duty BT40 or BT50 taper spindle, reinforced gantry frame and Yaskawa servo drive system. It delivers stable high-precision machining for aluminum alloy, brass, copper, mild steel and various mold materials. Widely used for fixture processing, mold cavity milling, mechanical part custom production, it is the core heavy processing equipment for medium and large metal processing factories.

 Machine Technical Parameter

 Advantages of 3 Axis CNC Router with BT40/BT50 Spindle & Cast Iron Table

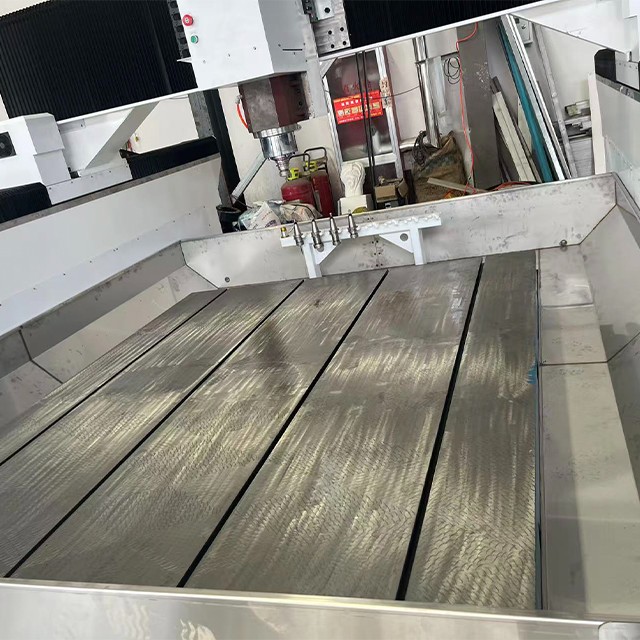

1. Integral Cast Iron Worktable, Ultra High Load & Anti-Deformation

Different from thin steel plate tables of light CNC machines, this machine adopts one-piece thick cast iron T-slot table. After high-temperature annealing to release stress, the table will not bend or deform under long-term heavy metal cutting. Multiple standard T-slots support quick fixture clamping for large metal blanks, stable fixation without shaking during deep milling.

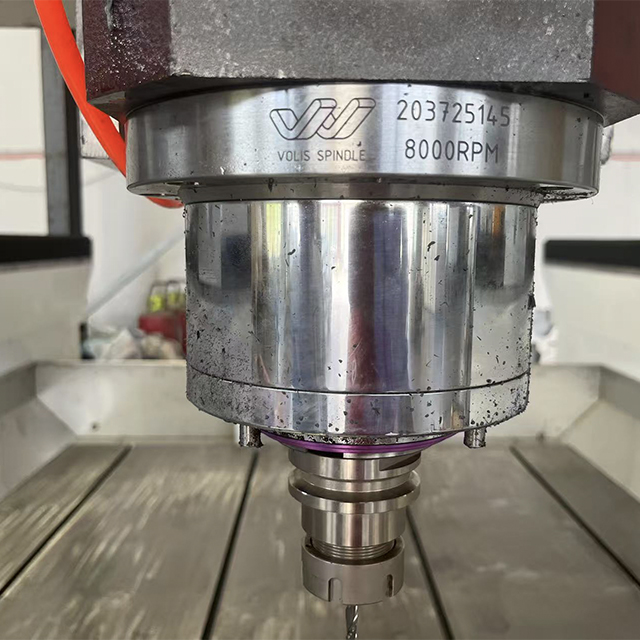

2. Optional BT40 / BT50 Heavy Spindle, Powerful Metal Cutting Performance

BT40 and BT50 taper spindles are professional configurations for industrial metal milling. Compared with ordinary ER spindles, BT series spindle has stronger rigidity, larger torque and better anti-vibration performance:

• BT40 spindle: Balanced choice for general aluminum, copper and small mold processing, cost-effective for medium batch production;

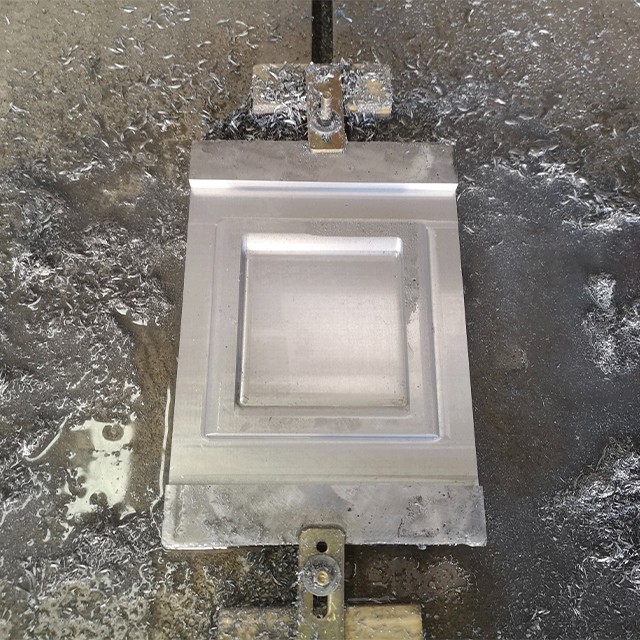

• BT50 spindle: Super large torque, suitable for heavy-duty deep cutting of mild steel, thick aluminum plates and large molds, efficient for rough machining.The VOLIS BT spindle runs smoothly up to 8000RPM, producing mirror-smooth burr-free metal surfaces as shown in our aluminum sample workpiece, drastically reducing post-polishing labor cost.

3. Full Cast Iron Frame System, Vibration-Free Continuous Machining

The whole machine bed, gantry base and Z slide plate all use cast iron structure with vertical reinforcing ribs. The overall annealing process eliminates processing stress fundamentally. Even during 24-hour non-stop heavy metal roughing, the machine vibration is controlled at an extremely low level, ensuring consistent machining accuracy year after year.

4. Yaskawa Servo Three-Axis Drive, Stable & Smooth Feeding

X/Y/Z three axes are equipped with original Yaskawa 2.9kw high-torque servo motors. Fast response speed, no jitter during high-speed linkage processing. When milling complex 3D curved metal mold cavities, the feeding speed remains stable, effectively avoiding tool marks and dimensional errors on workpiece surfaces.

5. Wide Metal Material Compatibility, One Machine for Multiple Processing Needs

This 3 axis CNC router breaks the limitation of single wood processing equipment. It can complete full-process machining for various metals and composite materials:

• Non-ferrous metal: Aluminum alloy, brass, copper electrode, heat sink, inspection fixture;

• Ferrous metal: Mild steel mold, hardware stamping template;

  Composite & pattern materials: Resin mold, fiber-reinforced PP-GF blanks, EPS foam casting patterns.

•

6. Independent Dustproof Control Cabinet, Easy Operation & Maintenance

Separate digital control cabinet is placed outside the processing area, effectively isolating metal cutting chips, cooling liquid and dust to extend control system service life. It perfectly reads G-code files exported from mainstream industrial design software. Factory operators can quickly master programming and operation without long professional training.

Industrial Application Scenarios

1. Metal Mold Manufacturing Industry

This machine is the standard equipment for mold factories worldwide:

• Mill aluminum injection molds, vacuum forming molds, blow molds and hardware stamping die bases;

• Process steel mold cavities for daily plastic products, sanitary wares and electronic housings;

• BT50 high-torque spindle completes rough milling of thick metal blanks, BT40 spindle handles fine finishing to achieve mirror mold surface, shorten mold delivery cycle significantly.

2. Automobile & New Energy Vehicle Parts Processing

Auto R&D labs and auto parts manufacturers widely adopt this equipment:

• Custom aluminum inspection fixtures, car door panel molds, bumper prototypes and battery shell molds for new energy vehicles;

• Process large foam master models for whole vehicle exterior design verification, then mill aluminum functional prototypes;

• The 900mm ultra-high Z stroke supports deep cavity machining for large auto interior molds.

3. Mechanical Equipment & Hardware Fixture Production

Machining workshops use the 3 axis CNC router for small-batch non-standard metal parts:

• Custom aluminum alloy mechanical accessories, equipment positioning jigs, tool fixtures and pump valve mold blanks;

• Milling copper electrodes for EDM discharge processing, suitable for precision hardware mold production;

• Cast iron table can bear heavy steel blanks, meet the heavy cutting demand of mechanical processing plants.

4. Foundry & Casting Pattern Manufacturing

Foundry factories rely on this heavy CNC machine for mass pattern production:

• Carve EPS foam lost foam patterns for aluminum, iron and steel casting parts;

• Machine solid wood mold frames and sand casting patterns with fine positioning bosses and assembly steps;

• Anti-vibration cast iron structure ensures uniform pattern size during long-time batch roughing, improving casting yield.

5. Ship & Yacht Composite Mold Processing

Marine engineering factories use it for yacht R&D and production:

• Mill full-size EPS foam hull master molds for fiberglass yacht shell production;

• Process aluminum alloy cabin decoration molds, ship component inspection fixtures and composite interior templates;

• Large working area can customized realizes one-piece molding of medium yacht partial hull models, avoiding splicing errors.

6. Aerospace Lightweight Composite Prototype Machining

Aerospace prototype labs select this machine for trial production of lightweight parts:

• Cut PP-GF fiber-reinforced plastic, carbon fiber composite blanks for aircraft interior structural parts;

• Process small aircraft aluminum alloy accessory molds and precision test fixtures;

• Stable ±0.1mm high precision meets strict dimensional tolerance standards of aerospace prototype verification.

7. Sculpture, Architectural Model & Art Craft Production

Design institutes and art studios process large-size custom models:

• Make city landscape sand table models, building scale models and oversized foam sculpture prototypes;

• Mill aluminum decorative art molds, garden ornament templates and relief carving blanks;

• 3-axis linkage efficiently completes large flat and simple curved surface processing with delicate detail restoration.

8. Vocational School Mechanical Training Equipment

Mechanical engineering colleges and technical training centers purchase this industrial-grade machine for teaching:

• Teach students BT spindle metal milling, 3-axis CNC programming and mold processing technology;

• Complete student graduation design metal prototypes, mechanical model production and new material cutting experiments;

• Simple operation interface lowers the learning threshold for beginners to master industrial metal CNC processing skills.

Conclusion

Light-duty aluminum-frame CNC carving machines can only handle soft materials like wood and acrylic, and cannot support heavy metal milling work. Our industrial 3 axis CNC router with cast iron table and optional BT40 / BT50 spindle is professionally developed for aluminum, steel, copper and mold processing. It owns super rigid cast iron structure, powerful cutting spindle and stable servo drive system, covering full processing demands of mold factories, auto workshops, foundries, shipyards and educational institutions.
