Large Industry 5 axis cnc router for boats yacht ship manufacture

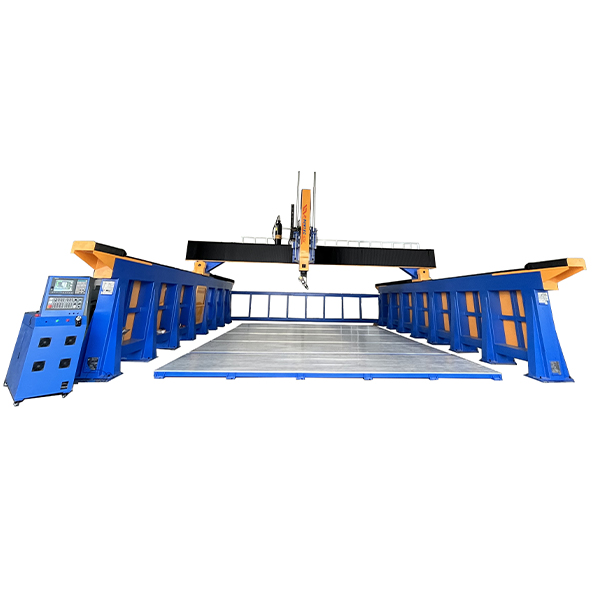

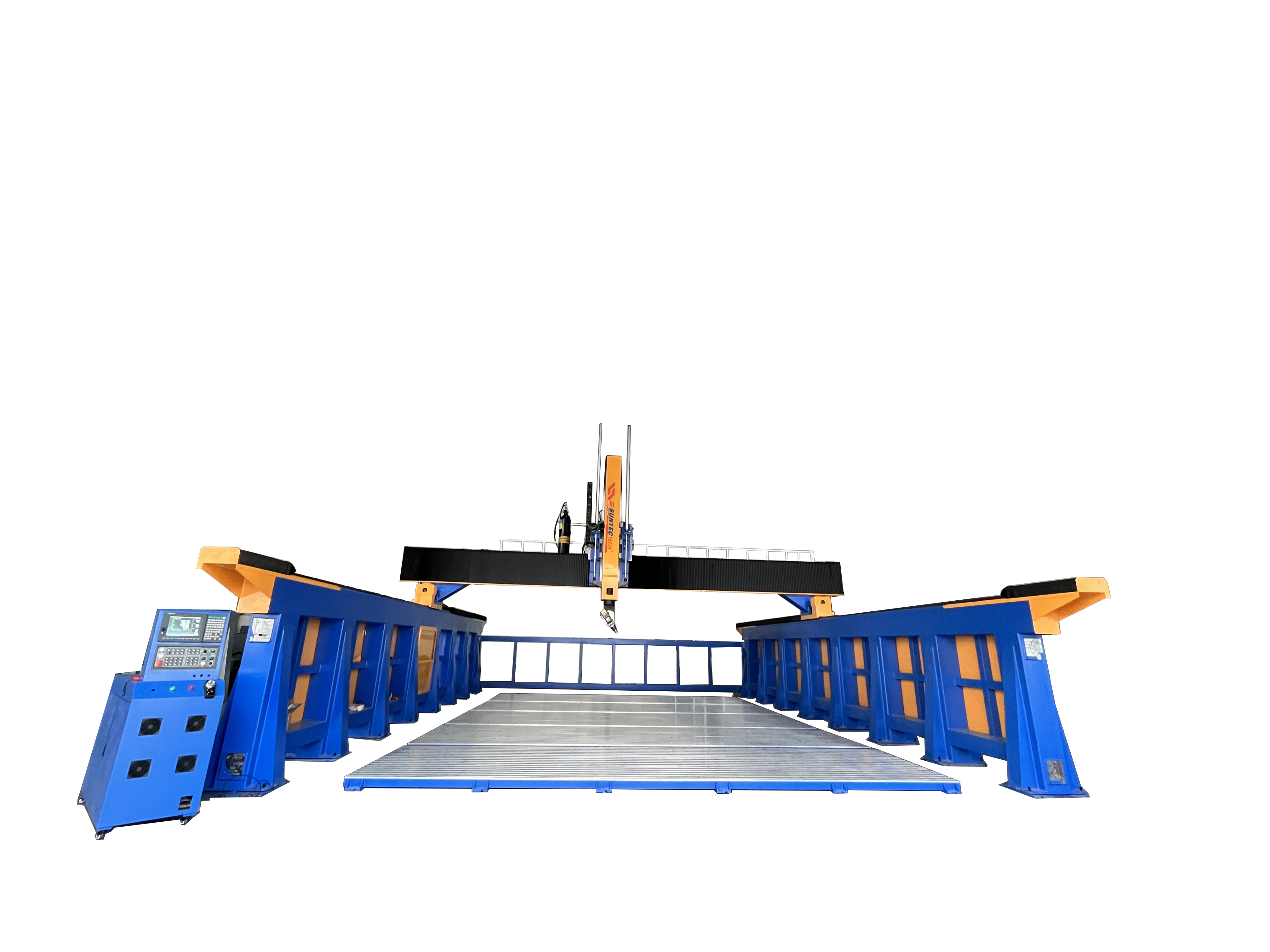

Large gantry-type 5-axis CNC routers specially customized for marine industry, also called 5-axis marine mold machining center. It adds 2 rotary axes (A/C or B/C) on X/Y/Z linear axes, with full 5-axis linkage & RTCP function, allowing the spindle head to tilt/rotate 360° to machine complex curved, undercut hull shapes without repeated workpiece re-clamping.
Parameter
Heavy welded steel gantry & bedAnti-vibration rigid frame for long-stroke (4–20m) hull mold cutting, avoids deformation during deep foam/epoxy milling.
High-power water-cooled spindle (9–33kW)Italian Hiteco / HSK63F spindle for fast material removal of EPS foam, epoxy tooling board, wood, fiberglass composites.

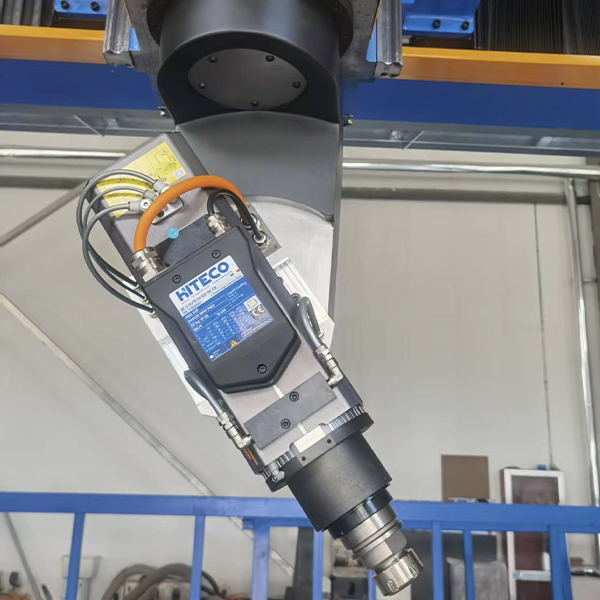

Hiteco full rotary 5-axis head±120° swing angle, access deep undercuts, hull inner curves, cabin window recesses in one setup.
Control system: Syntec / Siemens / OSAI industrial CNC with RTCP five-axis linkage, positioning accuracy ±0.02mm, repeatability ±0.08mm.
Custom working size: Standard 3500×15000×2000mm; oversized models up to 20000×6600×3000mm for superyacht full hull plugs.
Number | Description | Parameter |
1 | X,Y,Z Working Area | 3000*12000*2000mm |
2 | Table Size | 4300×16000mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
4 | A axis | A ±110 degree |
5 | C rotary | C± 245 degree |
5 | Table Surface | Cast iron |
6 | Frame | Big Steel Tube Structure with heat treatment |
7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 | Z Structure | Hiwin Rail Linear Bearings and TBI Ball Screw |
9 | Max. Power Consumption | (Without Spindle) 14 Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 14kw |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Yaskawa Motors |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Syntec Control System/TPA /osai |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | HSK-F63 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | powermill UG software |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 16500X2100X2300mm |
26 | N.W. | 16000KG |
27 | G.W. | 18000kG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
Delta/ Panasonic Servo Motors | ||
Colombo Spindle | ||
Schmalz PTP table |
