5-Axis CNC Wood Router: From Raw Log to Fine Sculpture & Industrial Mold – Full Machining Capability Unlocked
For woodworking workshops, foundry pattern shops, art studios and marine manufacturing companies across global markets, traditional wood processing has long been trapped in a persistent trilemma: complex curved surfaces require repeated manual clampings, heavy large logs carry high safety risks during flipping, and hand-carved products suffer from inconsistent quality and extremely long lead times. Ordinary 3-axis CNC routers can only handle flat or shallow curved workpieces; once undercuts, vertical side walls or full 3D contours are involved, operators have to reposition the material multiple times, leaving visible joint step marks and extending production cycles by 2–3 times.
The heavy-duty gantry 5-axis CNC wood router solves all these pain points in one integrated platform. Supporting both full 5-axis simultaneous machining and 3+2 indexed positioning, it completes all processes from roughing of ton-level raw logs to fine finishing of artistic sculptures and large industrial wood molds in a single setup. In this blog, we break down three real-world application cases from our production workshop, demonstrating how this machine upgrades wood processing efficiency, precision and product scope for both end manufacturing clients and industrial machinery distributors.
Hand-carved 3D animal sculptures and artistic decor pieces require highly skilled master craftsmen, and even top artisans can hardly guarantee 100% dimensional consistency for batch orders. A medium-sized solid wood sculpture usually takes 3–7 working days to carve by hand, with soaring labor costs and high scrap rates for complex undercut structures such as paw bottoms, facial contours and curved back surfaces.For ordinary 3-axis CNC machines, the limitation is even more obvious: they can only process the top-facing surface of the workpiece. To carve the side and bottom of the sculpture, workers have to manually flip and re-clamp the wooden block multiple times, which almost always causes positioning deviation and leaves obvious joint lines on the finished surface. Post-polishing to eliminate these marks adds extra workload and often damages the fine detail of the design.

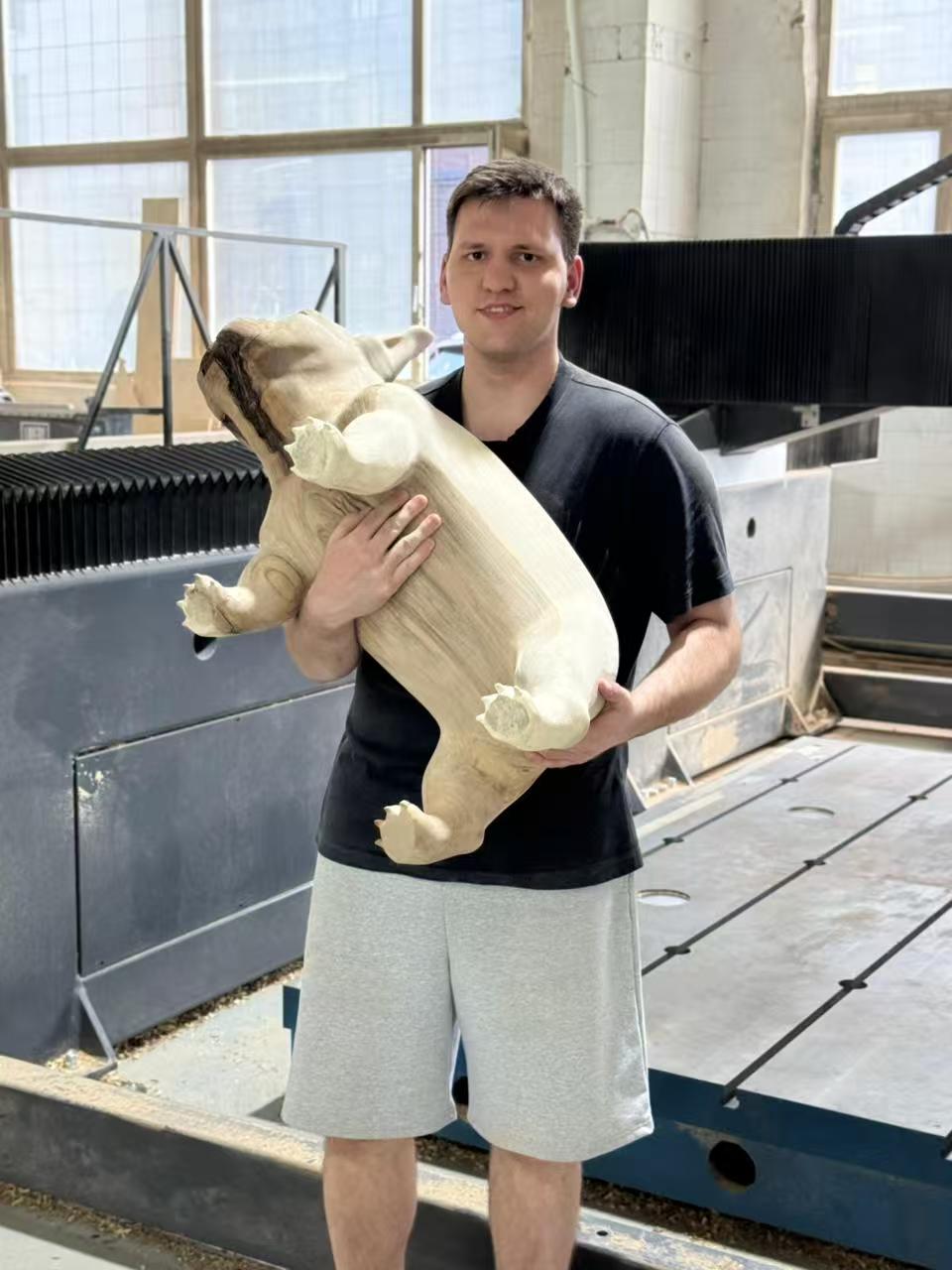

Our 5-axis CNC router is equipped with a high-rigidity ±110° tilting spindle head, which can tilt and rotate freely around the workpiece to reach every curved surface and undercut angle without any re-clamping operation. For the solid wood bulldog sculpture shown in the image, the machine completes full 360° contour machining in one single setup: from roughing the basic geometric shape out of a solid wood block, to semi-finishing the body curvature, to fine finishing the delicate details of paw pads, facial lines and ear contours. The automatic tool changer (ATC) switches between roughing end mills, ball nose finishing cutters and detail engraving bits automatically throughout the process, with no manual intervention required.
Efficiency boost: Machining time for a single medium sculpture is 6–8 hours, 80% faster than traditional hand carving.
Surface quality: Surface roughness reaches Ra ≤ 1.6μm after finishing, with zero joint marks from repeated clamping, greatly reducing manual polishing workload.
Batch consistency: Dimensional deviation is controlled within ±0.02mm per piece, delivering identical product quality for bulk custom orders.
Broad material compatibility: Works perfectly with solid wood, MDF, multilayer plywood, polyurethane foam and epoxy tooling board.

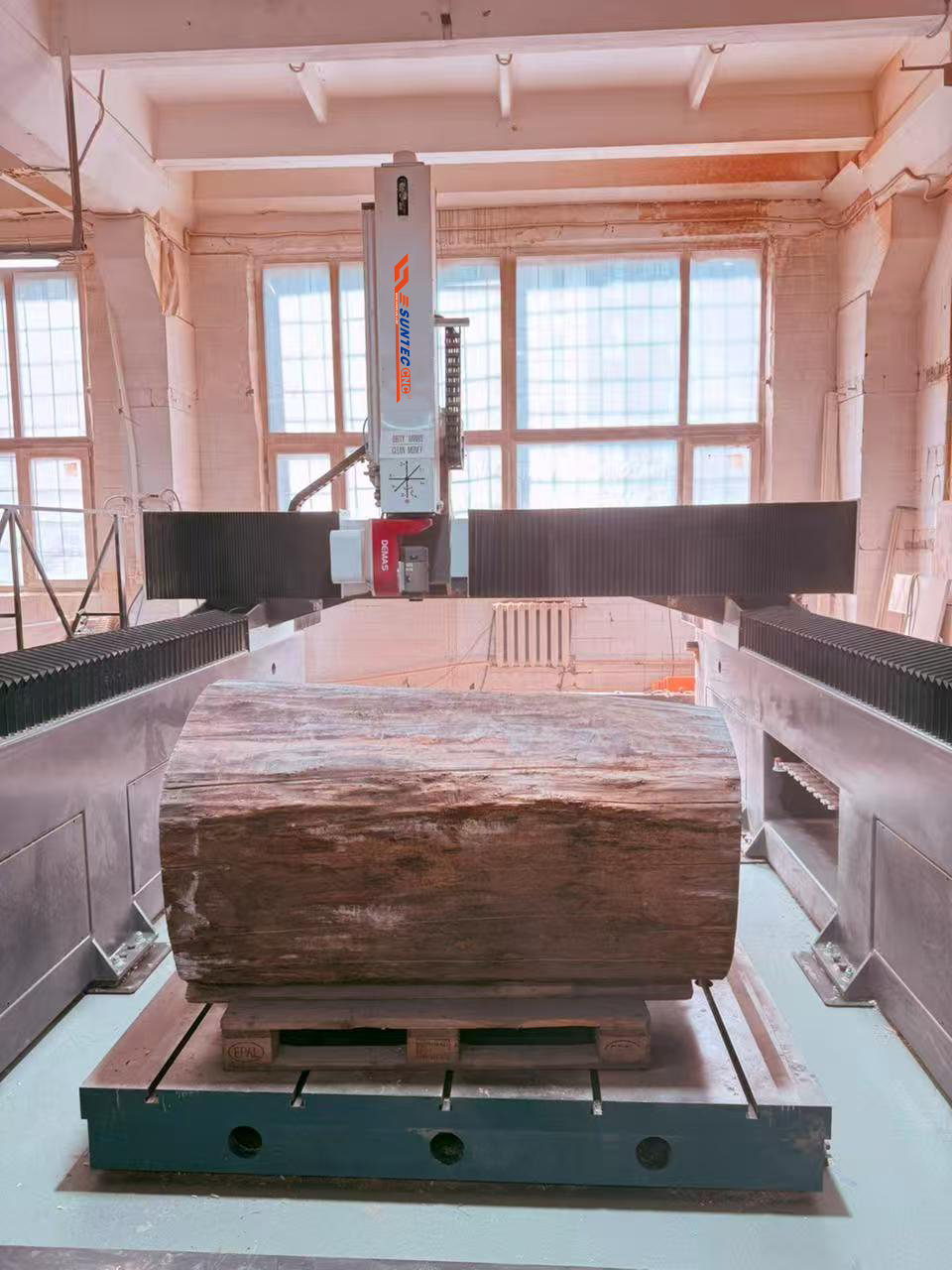

The large-diameter solid wood log loaded on the 5-axis CNC worktable, ready for roughing and mold blank processing. This scenario is the most common daily production demand for foundry pattern shops and large mold manufacturers.
For large industrial wood molds and heavy log processing, the biggest production bottleneck is material handling and positioning. A whole log or thick wood block for mold making can weigh hundreds to thousands of kilograms. On traditional 3-axis gantry machines, workers have to use overhead cranes to flip the workpiece 3–4 times to process different sides, which not only takes up 30–40% of total production time, but also brings non-negligible safety risks of slipping and collision during lifting.In addition, each flip and re-clamping introduces new positioning deviation. The cumulative tolerance after multiple flip operations often reaches 0.3–0.5mm, directly affecting the assembly accuracy of large split molds and leading to fitting gaps in final mold assembly.
Our heavy-duty gantry 5-axis router is specially designed for large and heavy workpiece processing. It adopts an integral stress-relieved steel welded bed, high-load square linear guide rails and dual-drive Y-axis gantry structure, which can stably carry solid wood blocks and mold blanks weighing several tons without vibration or deformation during long-time cutting.The tilting 5-axis spindle head can approach the workpiece from any spatial angle, processing the top surface, four vertical sides and all inclined surfaces of the log in one single clamping. There is no need for manual flipping or secondary crane lifting throughout the whole roughing and semi-finishing process. Workers only need to hoist the log onto the worktable once at the beginning, and the machine completes all subsequent processing automatically.
Reduced handling time: Material flipping and positioning time is cut by over 60%, shortening the total processing cycle of large mold blanks by 35%.
Improved workplace safety: Eliminates safety risks of heavy workpiece flipping and repeated lifting operations.
Higher overall accuracy: Avoids cumulative positioning errors from repeated clamping, ensuring consistent dimensional accuracy across the entire large mold.
Wide industrial adaptation: Perfectly suitable for processing large wood pattern blanks for foundry, shipbuilding, automotive and construction mold industries.
Behind the three application cases is a complete set of optimized industrial configurations designed for long-term stable heavy-duty wood processing.
The integral steel welded bed undergoes secondary high-temperature stress relief annealing to eliminate internal welding stress, ensuring no deformation after years of heavy cutting. The X/Y axes adopt dual-drive helical rack transmission with high-precision linear guide rails, and the Z-axis is equipped with high-precision ball screws and nitrogen spring counterbalance, delivering stable cutting performance even for long-time full-stroke processing of large workpieces.
The B-axis tilting head is equipped with a precision cycloidal reducer with backlash ≤ 1 arcmin, supporting ±110° tilting angle and 360° C-axis continuous rotation. The high positioning accuracy of the rotary axis ensures smooth transition of curved surface tool paths, with no step marks or cutter vibration lines even when processing complex undercut and vertical wall structures.
Standard 8–16 station linear or carousel ATC magazine automatically switches roughing end mills, ball nose finishing cutters, drilling bits and chamfer tools within 3–5 seconds. The whole machining process runs continuously without manual tool replacement, supporting 24-hour unattended production for bulk orders.
The machine is fully compatible with PowerMILL, Mastercam, Siemens NX and all mainstream industrial CAM software. We provide customized post processors tailored to the exact machine configuration, ensuring seamless conversion from 3D design models to executable NC code, with built-in collision detection and overtravel protection logic.
The heavy-duty 5-axis gantry CNC wood router breaks the inherent limitations of traditional wood processing equipment, realizing full-process automated machining from raw heavy logs to fine artistic sculptures and large industrial molds. It fundamentally solves the long-standing industry pain points of multiple clamping operations, low production efficiency, inconsistent product quality and high workplace safety risks in large wood workpiece processing.
From small custom art sculptures to ton-level foundry patterns and large marine hull molds, this single machine covers almost all mainstream wood processing demands in industrial and creative industries. Whether you are a mold workshop looking to upgrade production capacity, a wood art studio pursuing mass customization, or a machinery distributor seeking differentiated competitive products, this 5-axis CNC router is a high-return investment that can quickly improve your market competitiveness.
If you want to learn more about customizable machine sizes, detailed technical parameters, processing sample videos or distributor cooperation policies, feel free to contact our technical sales team for full supporting materials and exclusive quotation
