5 axis cnc router ptp table woodworking center Five axis pod and rail cnc for timber

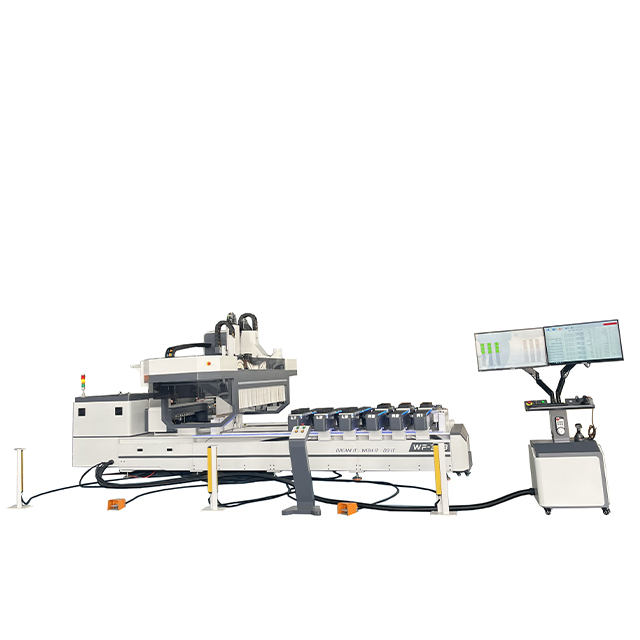

The 5 Axis CNC PTP Wood Working Machining Center combines PTP multi-spindle drilling group, Hiteco/Hskf63 ATC spindle and full 5-axis linkage technology into one rigid machine frame. It finishes all woodworking processes in one single clamping: vertical & horizontal drilling, grooving, saw cutting, complex 3D curved surface milling, mortise and tenon joint processing, 3D sculpture carving. It is the all-in-one high-efficiency production equipment for high-end solid wood furniture, customized cabinet factories, stair processing workshops and wood mold manufacturers worldwide.
Project | parameter |
table dimensions, | 1300*3100mm |
table structure, | Powered strip stage(6 sets),each strip has 3 sets of suction cups |
effective stroke, | XYZ:3300*1500*600mm |
displacement | XYZ:60*60*15m/min |
speed,working | 380V50HZ 3P+N |
voltage,control | Italian OSAI(RTCP) |
system,servo | absoute value of Yaskawa bus in Japan |
motor,spindle | italian HITECO 15KW HSKF63&BC 5-axis head(50°oblique angle) |
parameters, | Taiwan Puten 9V4H2S |
dilling parameters, | Servo disc 12-ool magazine+linear 8-toolmagazine |
linear guide | Taiwan PMIXYZ:35 . |
Z-axis lead | Taiwan TBI:4010 |
screw,gear rack | Henrijan,Germany:M2(Grinding) |
reduce,frequency | New Bao flange type-3 arc minutes |
converter,vacuum | DeltaElectronics(Tawan)15KW |
pump,electrical | German Beck 250m³/h |
components, | Schneider Electnic of France |
lubrication system, | Volumetric automatic lubrication system |
toolsetter,chip | Automatic tool setter (large diameter disc) |
remova function, | Automatic feeding belt conveyor |
barcode scanning | Wireless baroode scamer |
function,safety | Large beam guard/safety light film/online montoring |
protection,cooling system | Spinde water chler+rack-mounted industrial ar ondifoner |

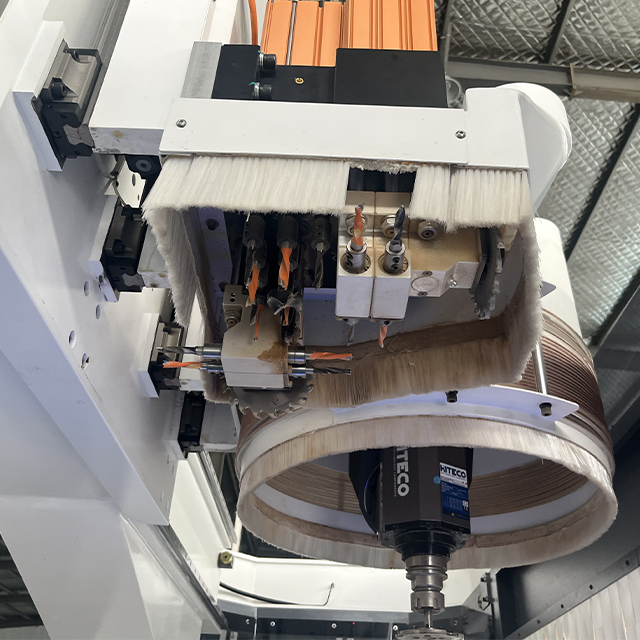

Taiwan Brand 9V4H2S dedicated drilling system, with 9 sets of vertical drill bits + 4 sets of horizontal drill bits + 2 sets of saw blades, supporting simultaneous processing with multiple drill bits, precisely adapting to the hole and slot requirements of all types of panel components such as cabinets, doors, and shelves.

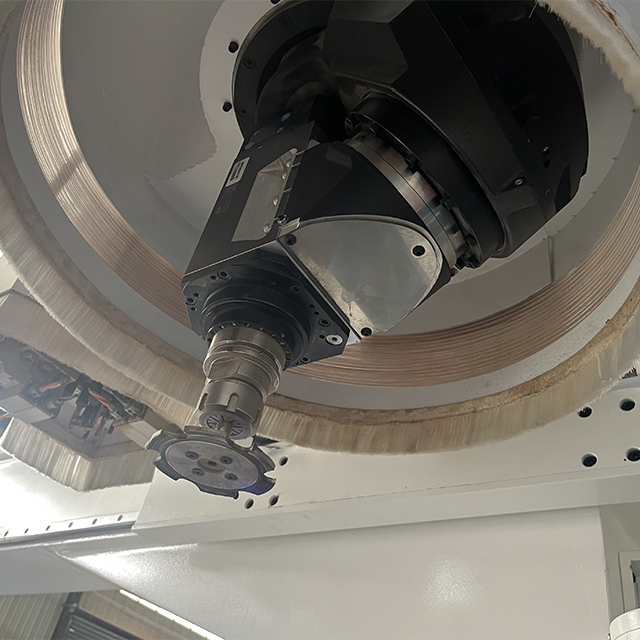

5 axis cnc head with saw can 0-360 degree drilling cutting groving

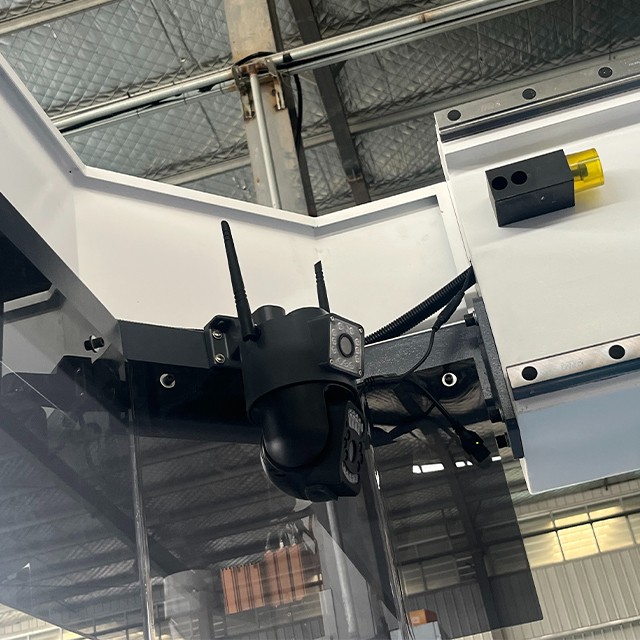

Camera can remote control how to operate machine

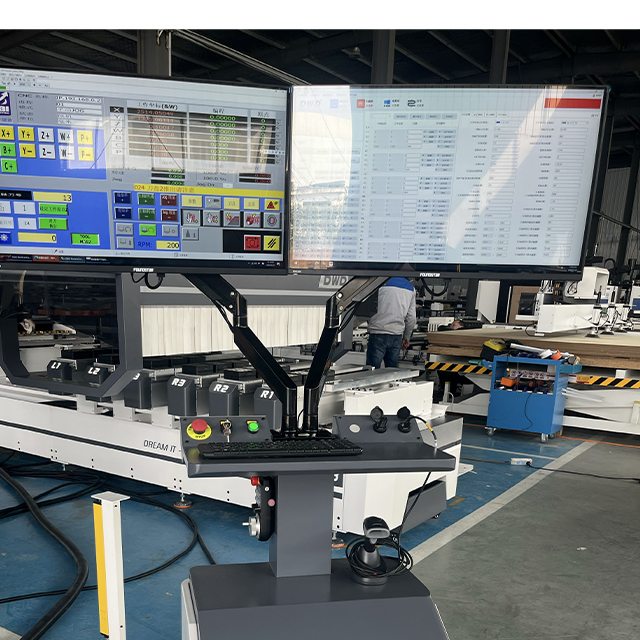

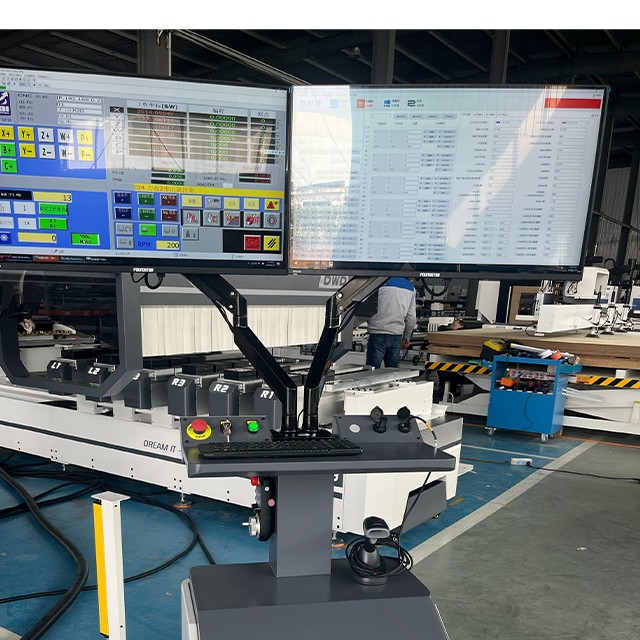

Osai controller

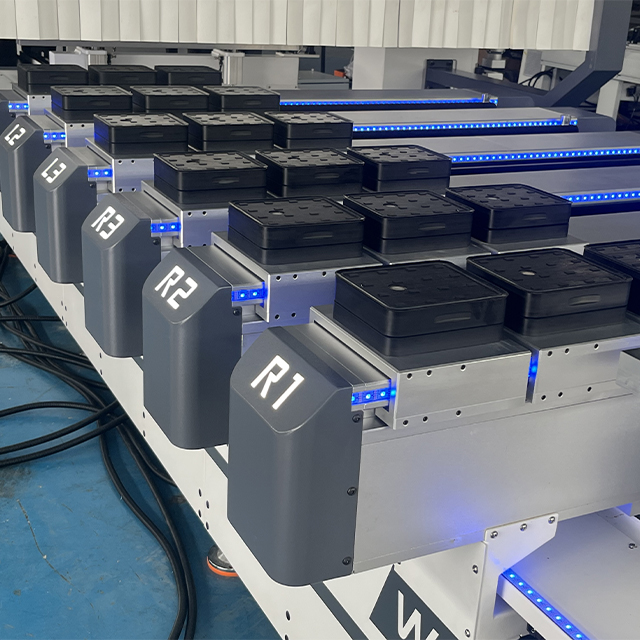

pod and rail table with postion light can make wood board at right position
