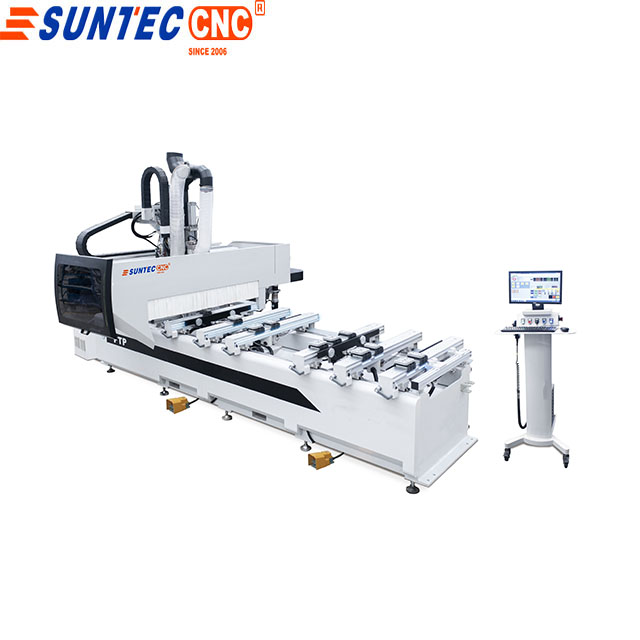

Customized suntec osai controller 5 side milling center PTP cabinet furniture wood door making cnc center ST-1230

Customized suntec osai controller 5 side milling center PTP cabinet furniture wood door making cnc center ST-1230

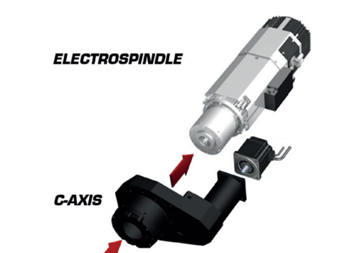

C  axis with aggregated head can side drilling routing milling

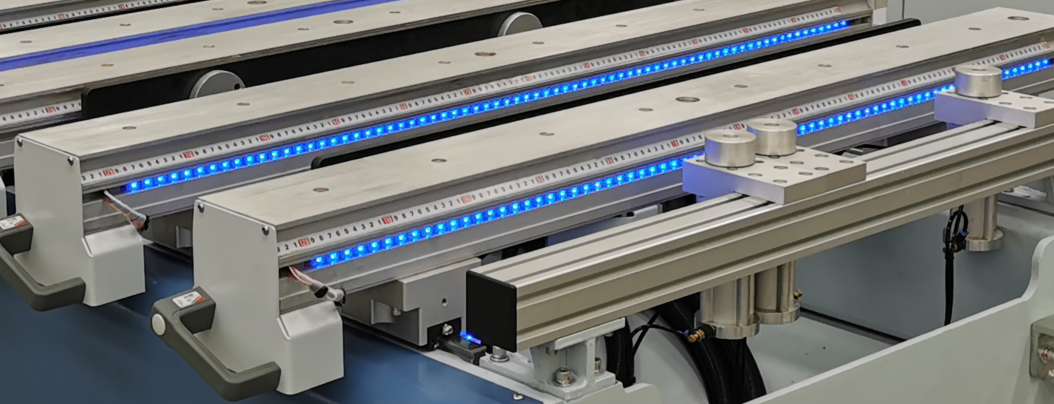

POP and rails from Germany schmalz divided two working zone mainly for solid hard wood doors and Mdf  wood processing .

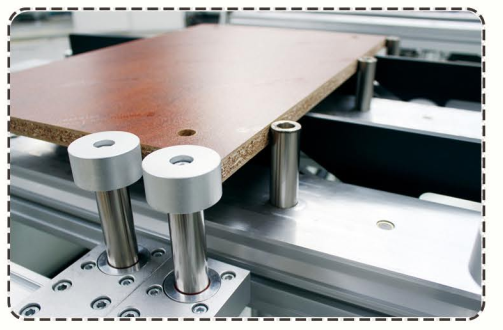

POP  and pins for small wood piece fixed

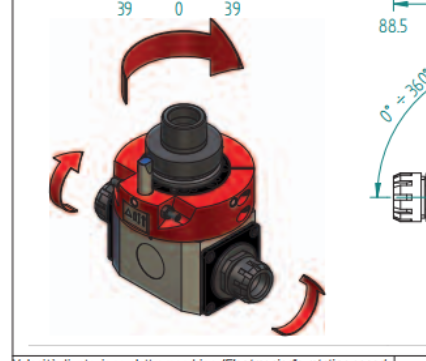

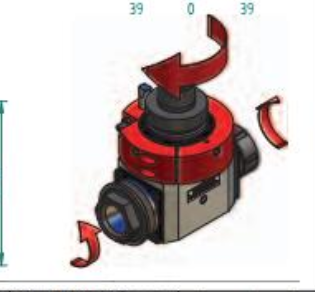

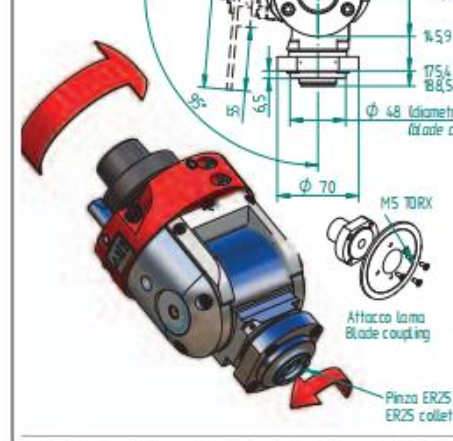

Aggregated head for side drillling cutting

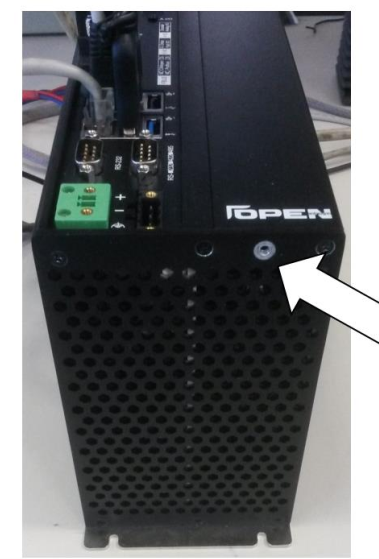

osai controller much more smart

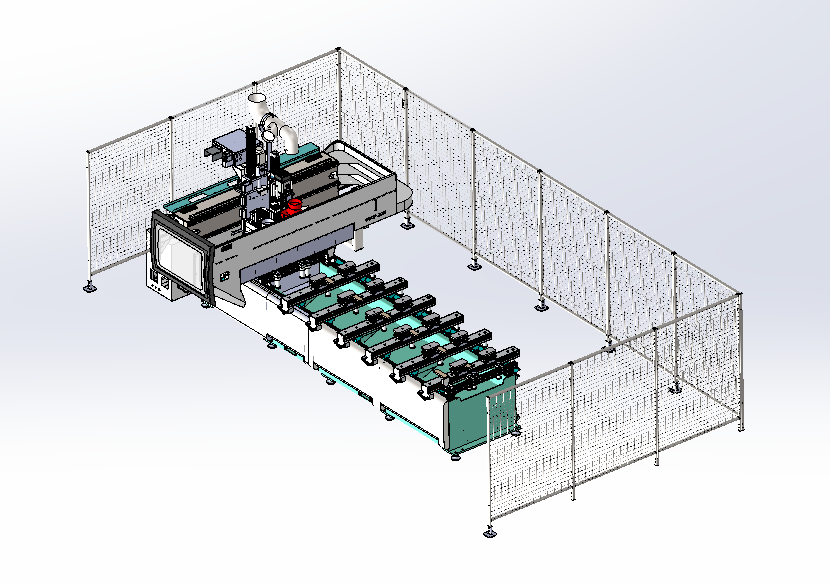

Safety fence  3 sides  for protection

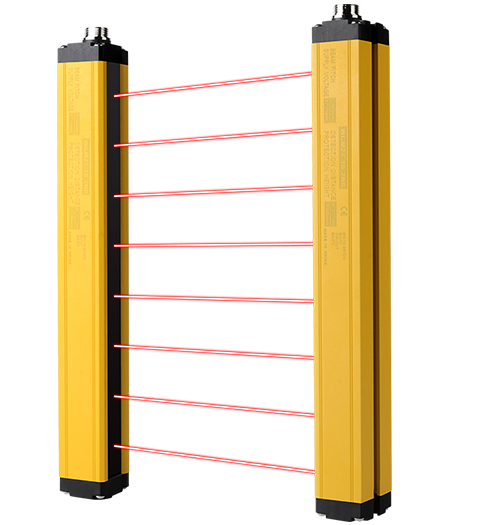

Ce light barrier

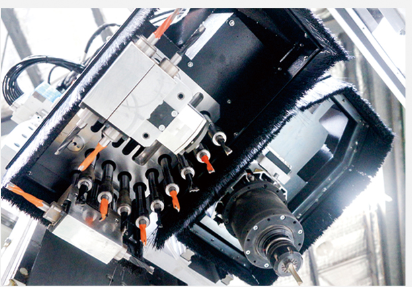

Boring head 9V3H1S for up milling

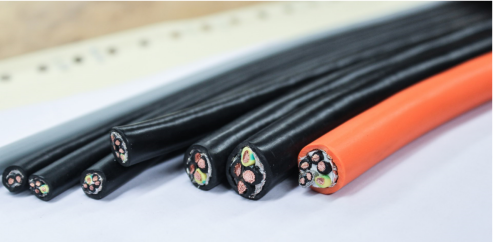

Germany igus cable  heat resistance, wearing resistance , long life span , high quality .

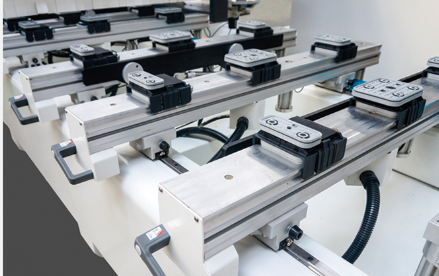

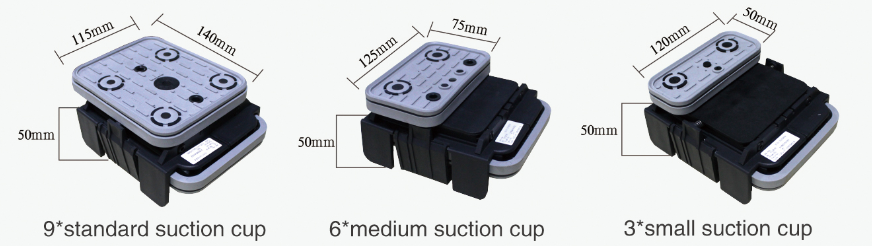

18 piece three type shmalz vacuum cups for different kinds of boards .

shown the vacuum cups positions for the regular size.

1. Suntec ptp working center mainly for 5 sides routing drilling cutting side-milling etc can with boring head saw etc .


2. Suntec 5 sides ptp working center divided two working zone Non-stop work cycle it can loading unloading wood board at same time save working  time .

3. Suntec ptp cabinet wood door working center can point to point suction-available for big and small boards , it can suction for whole wood board also can be small wood piece by suction cups for side drilling . especially for solid wood .mdfwood . doors side processing .hinges,connectors ,bespoke  cabinet furniture etc .

   Model	ST-1230
   Traveling size	3400*1640*250mm
   Working size	3060*1260*100mm
   Table size	3060*1200mm
   Transmission	X/Y rack and pinion drive, Z ball screw drive
   Table structure	Pods and rails  from  SCHMALZ
   Spindle	9 KW HSD ISO Spindle
   Traveling speed	80m/min
   Working speed	20m/min
   Tool magazine	8 slots carousel with Stepper motor
   Software	CAM
   Driving system	Japan YASKAWA servo system
   Cable	Germany Igus cables
   Relay	Schneider  relay
   Controller	OSAI made in Italy with Lenovo computer I5 8GB
   Tool holder	8 pieces of  tool holders ISO ER32
   Pump	1 set  4KW Becker pump with 140m³/h
   Voltage	3P 380V 50HZ
   Packing size	5120*2270*2360mm(20GP container )
