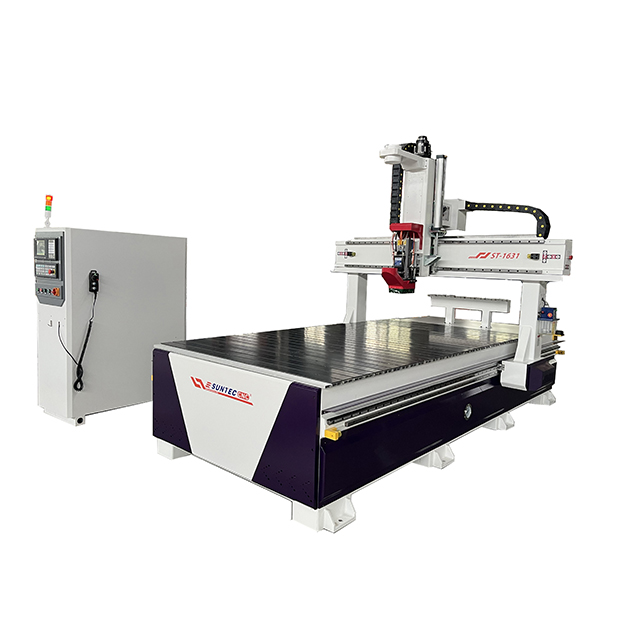

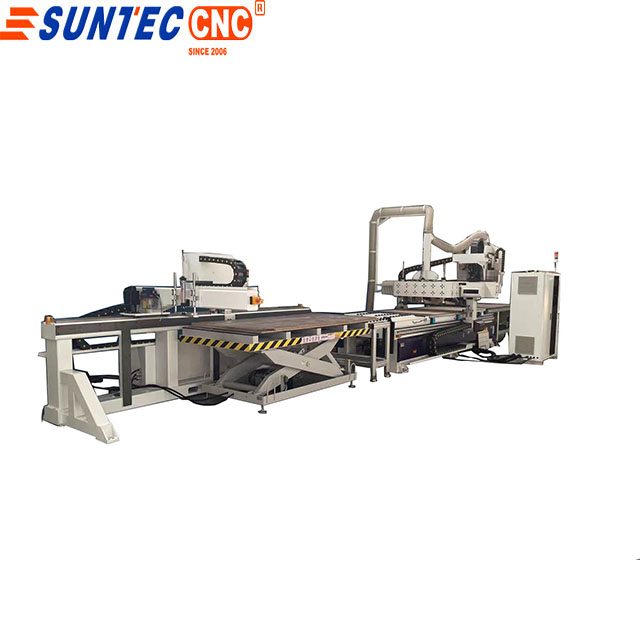

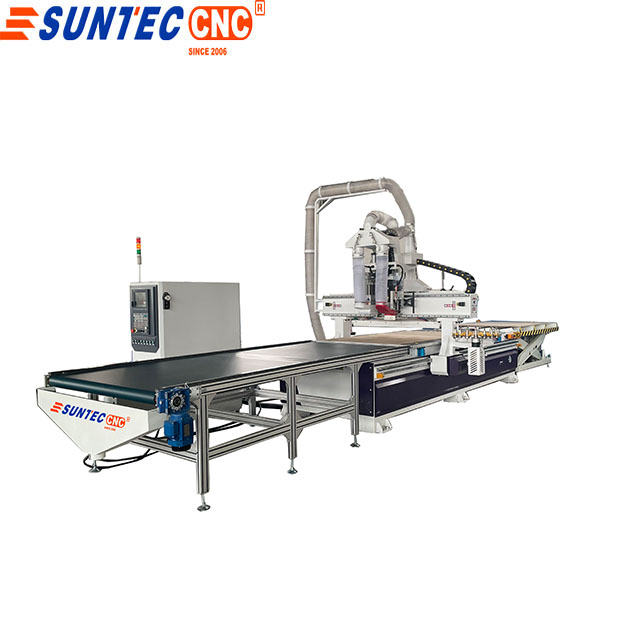

Customized ST1330 nesting cnc automatic loading unloading for wood furniture
Description | Parameters |
Model | ST-1330 |
Working Area | 1300x3000x200mm |
Table Size | 3150x4440mm |
Machine structure | Welded Steel square tube |
Traveling Positioning Accuracy | ±0.01/200mm |
Repositioning Accuracy | ±0.01mm |
Table Surface | Vacuum table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 11KW |
Max. Rapid Travel Rate | 9000mm/min |
Max. Working Speed | 6000mm/min |
Spindle head | 9.0kw Italy HSD spindle, drill bank, atc magazine |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan YASKAWA Servo motor |
Working Voltage | AC380V/50/60Hz,3PH |
Command Language | G code |
Operating System | Taiwan Syntec controller |
Computer Interface | USB |
Collet | ER32 |
Software Compatibility | Type3 / Ucancam / Artcam |
Running Environment Temperature | 0°C~45°C |
Relative humidity | 30%~75% |

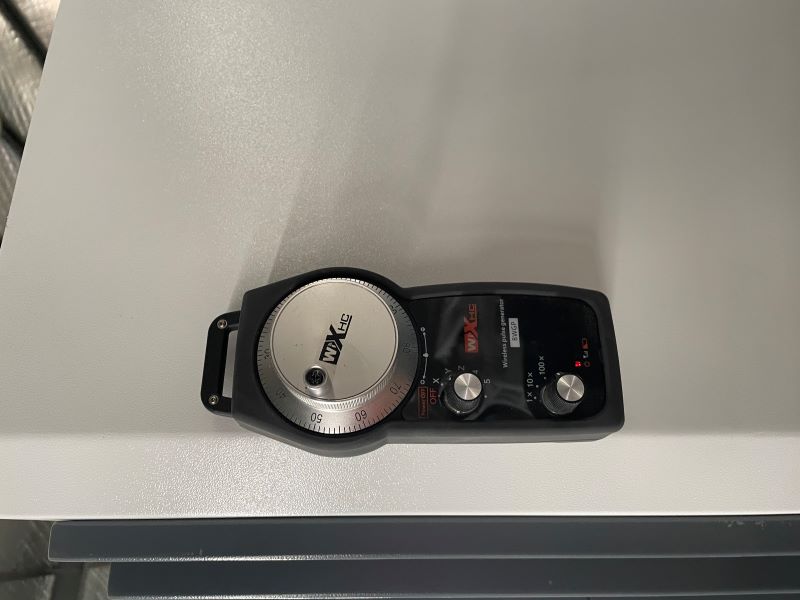

remote control easily for tool set any position

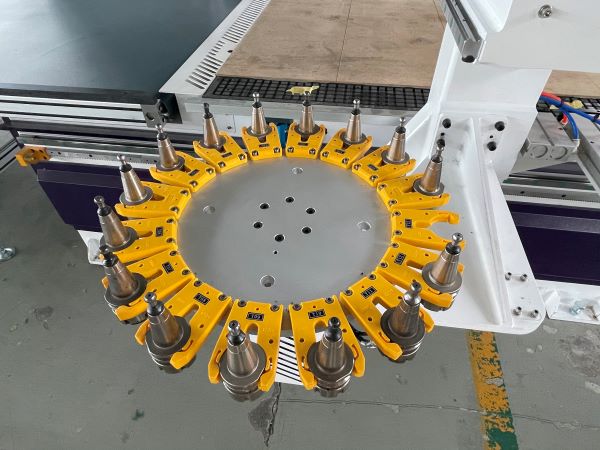

Disc automatic tool set 16 piece HSKF63 holder

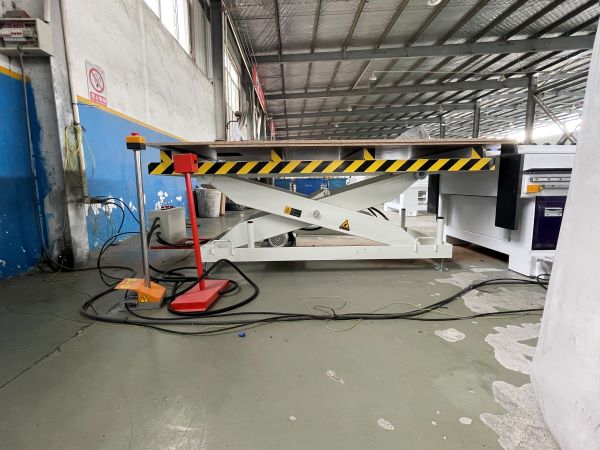

automatic loading table can load 30kgs wood boards sheets

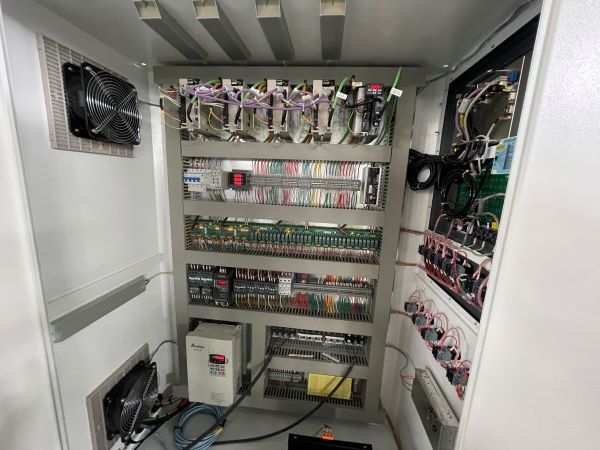

japan yaskawa driver with schneider parts

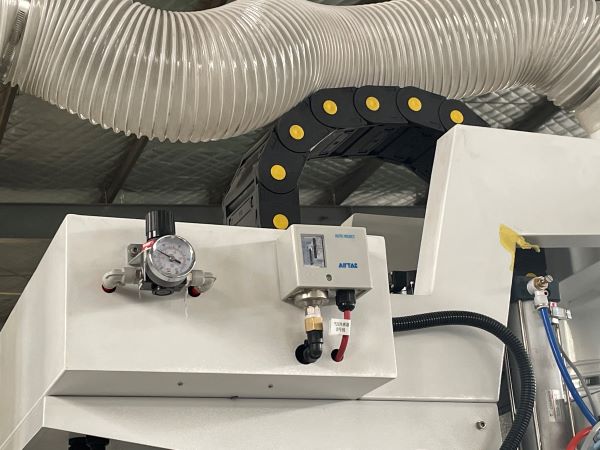

airtac parts for air
two air pusher for two size woking size wood
syntec 21MA controller can adjust speed anytime

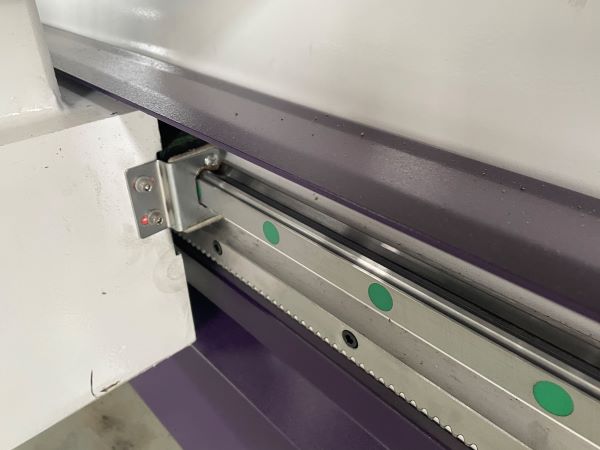

dust cover to make sure square guide high precision
automtic pusher device for push unloading table and also for dust well

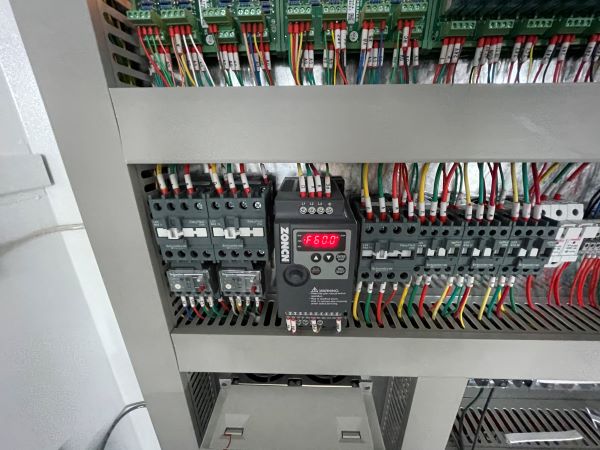

drilling bank center invertor for control drilling bank speed

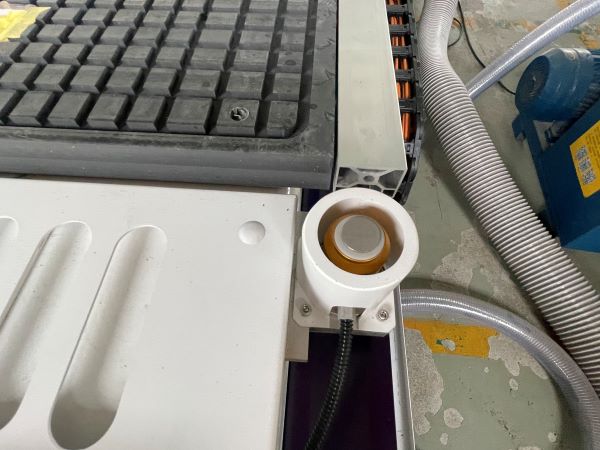

Tool set unit

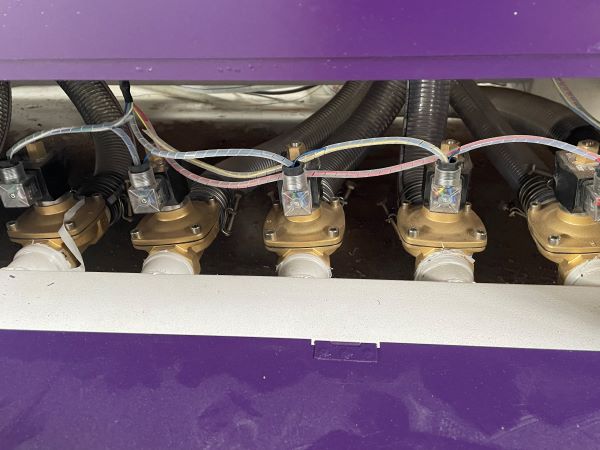

Electrical valve for control each vacuum zone easily vacuum table 600*600mm each vacuum zone have two hole

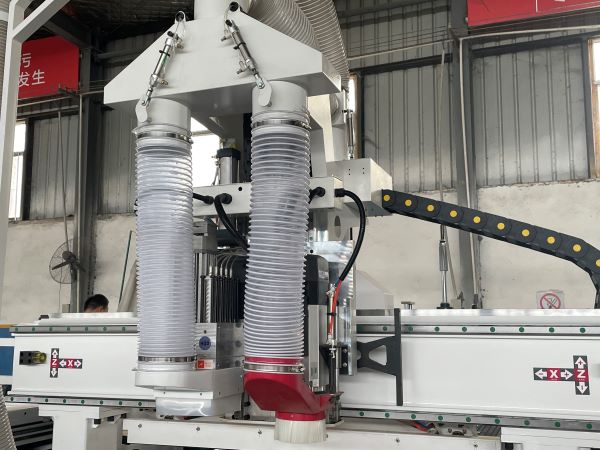

italy hsd spindle 9.6kw with drilling bank center

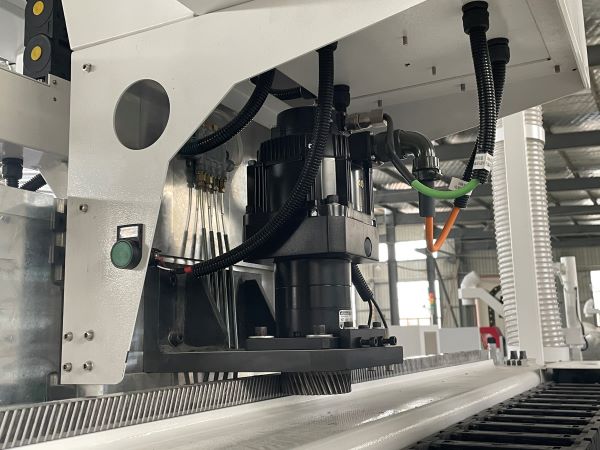

japan yaskawa driver and japan shimpo reducer

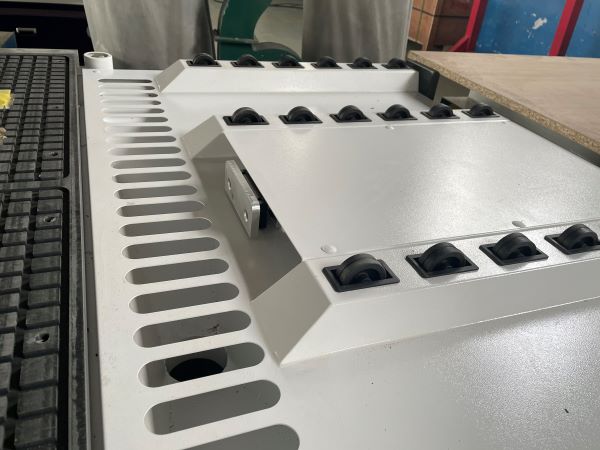

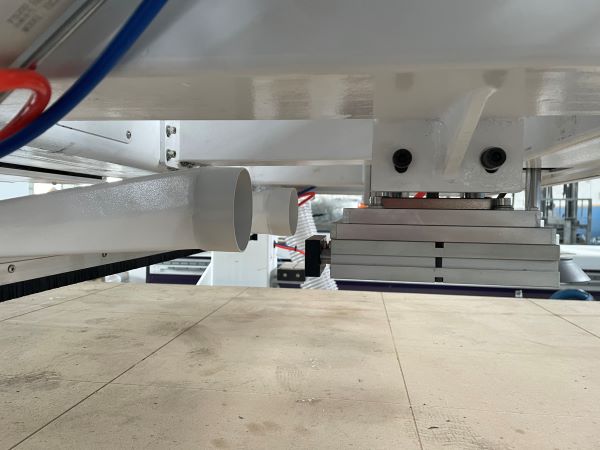

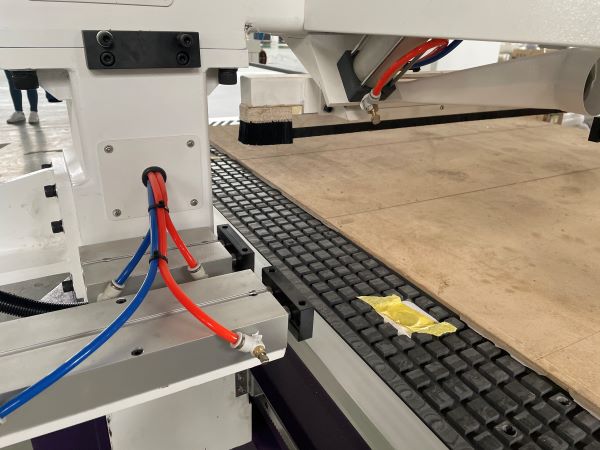

nesting table with back pusher to put wood right positon

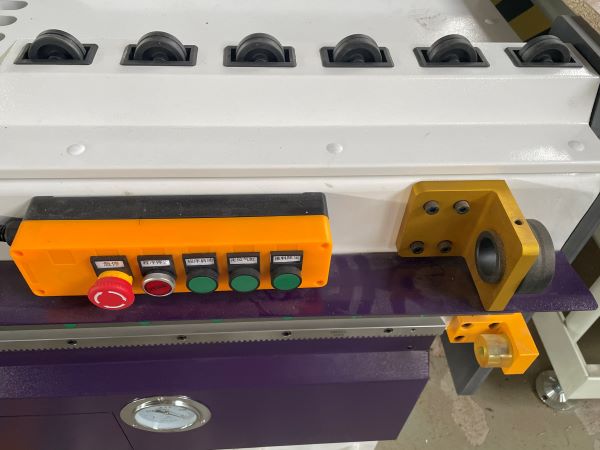

back button can easily to press

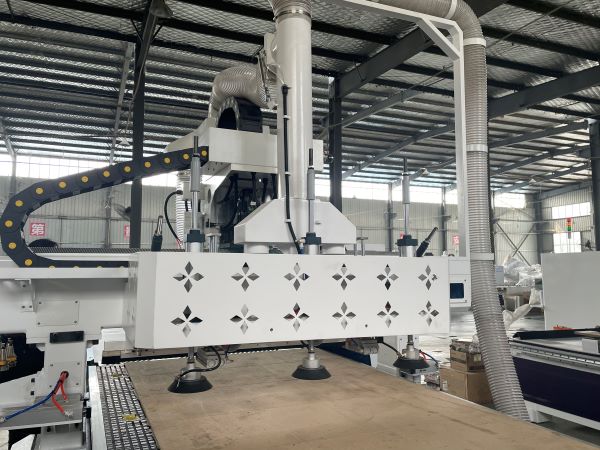

vacuum cups to suck wood well
